Overview
ERV Engineering Data & Submittal Requirements define the mandatory technical documentation needed for HVAC system approval in North America.
ERV Engineering Data & Submittal Requirements are required for mechanical engineer approval and building permit submission in USA and Canada.
Energy Recovery Ventilators (ERVs) must comply with performance standards, energy codes, and electrical safety certification requirements.
ERV systems are evaluated under:
- HVI / AHRI / ASHRAE performance standards
- IECC / NECB energy codes
- UL / ETL / CSA electrical safety frameworks
Compliance and engineering requirements
ERV systems used in USA and Canada are evaluated based on three regulatory layers:
1. Performance Standards
- HVI airflow and performance testing methods
- AHRI performance rating standards
- ASHRAE ventilation standards (62.1 / 62.2)
2. Code Compliance
- IECC energy code requirements (USA)
- NECB building code requirements (Canada)
- Local jurisdiction energy efficiency requirements
3. Safety Certification
- UL electrical safety listing
- ETL equivalent certification
- CSA / cCSAus frameworks
Engineering Data Requirements
A complete ERV engineering submittal must include verified performance data required for mechanical approval under HVI and ASHRAE test conditions.
Airflow & Aerodynamic Data
| Item | Requirement |
|---|---|
| Supply airflow (CFM) vs ESP curve | Required for fan performance verification under full static pressure range |
| Exhaust airflow (CFM) vs ESP curve | Required to confirm balanced ventilation performance |
| Balanced airflow verification | Required under design operating conditions |
Engineering validation is based on maintaining airflow stability across the full External Static Pressure (ESP) operating range.
Energy Performance Data
| Item | Requirement |
|---|---|
| Sensible Recovery Efficiency (SRE) | Used for temperature-based energy recovery evaluation |
| Total Recovery Efficiency (TRE) | Used for combined sensible and latent energy modeling |
| Apparent Sensible Effectiveness (ASEM) | Used for gross performance evaluation including fan influence |
These metrics are used in HVAC load calculation and energy compliance modeling under ASHRAE 90.1 frameworks.
Air Leakage & Cross Contamination Data
| Item | Requirement |
|---|---|
| Exhaust Air Transfer Ratio (EATR) | Defines exhaust-to-supply leakage control |
| Outdoor Air Correction Factor (OACF) | Defines airflow correction under internal leakage conditions |
These parameters define internal leakage control and air separation integrity in compliance with HVI standards.
Engineering Note
A certified ERV submittal package must provide synchronized data cross-referencing electrical limits (MCA/MOP) and aerodynamic curves (CFM vs ESP) to ensure site-level integration compliance with the National Electrical Code (NEC) and local building permit requirements.
Submittal Package vs Rejection Risks
| Submittal Package Requirements | Submittal Rejection Risks |
|---|---|
| Certified HVI performance report | Missing HVI-certified performance documentation |
| Airflow vs ESP performance curves | Missing airflow vs ESP performance curves |
| Electrical specification sheet (MCA / MOP) | Incomplete electrical load data (MCA / MOP) |
| Dimensional drawings and installation layout | Missing or non-compliant installation drawings |
| System integration details | Lack of interface documentation |
| Compliance with design conditions | ASHRAE 62.1 ventilation non-compliance |

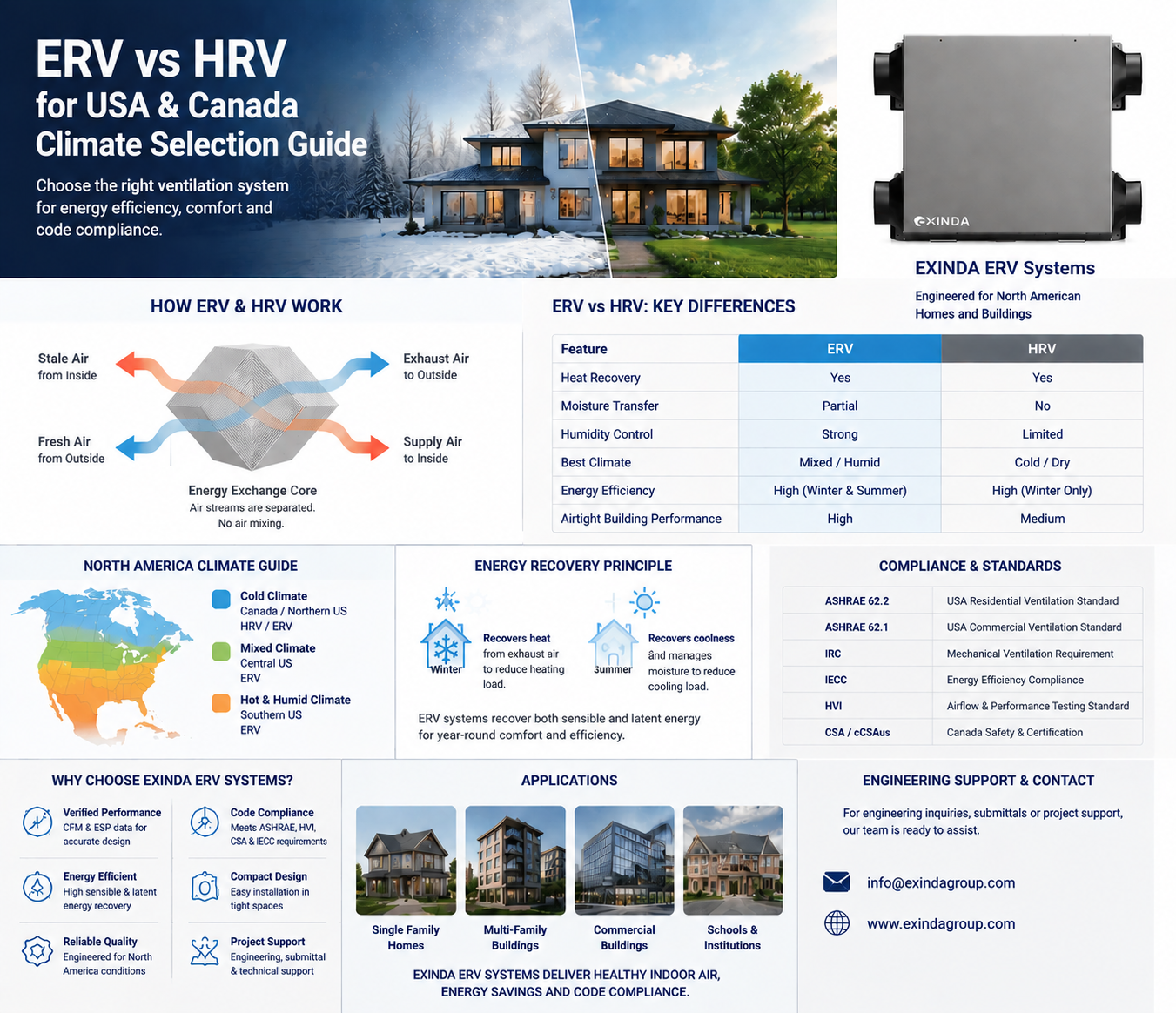

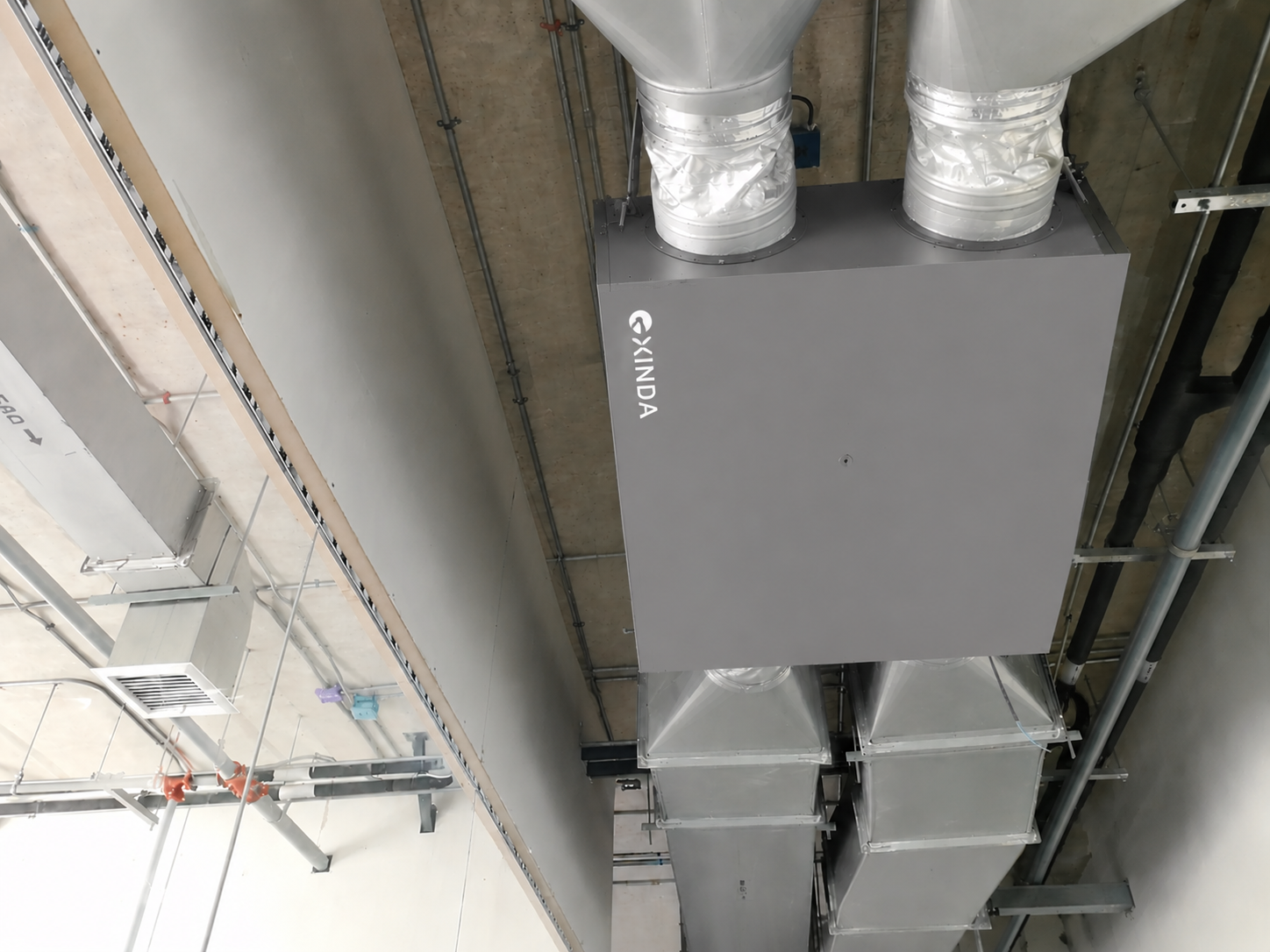

EXINDA ERV systems
EXINDA supplies ERV systems for HVAC projects in North America.
EXINDA ERV systems comply with:
- HVI performance testing standards
- ASHRAE ventilation requirements
- UL / ETL / CSA electrical safety frameworks
Project supply capability
We support:
- Project-based HVAC supply
- Distributor and contractor cooperation
- Custom engineering configuration
- Full submittal documentation (CFM / ESP / electrical data)
Engineering support
EXINDA provides:
- ERV selection based on airflow (CFM)
- Submittal packages for mechanical approval
- Performance data for HVAC design
- Installation documentation
Project inquiry
Please provide:
- Building type
- Airflow requirement (CFM / ACH)
- Country (USA / Canada)
- HVAC system configuration
FAQ
What is required in an ERV submittal?
ERV Engineering Data & Submittal Requirements include HVI airflow data, ESP curves, electrical data, and installation drawings.
Why are ERV submittals rejected?
Missing airflow curves, incomplete electrical data, or lack of HVI-certified performance documentation.
What standards govern ERV systems?
HVI, ASHRAE, IECC, NECB, UL, ETL, CSA.
What electrical parameters are mandatory in ERV engineering submittals?
Voltage, phase, frequency, Minimum Circuit Ampacity (MCA), and Maximum Overcurrent Protection (MOP).
How is ERV performance verified for North American HVAC compliance?
Performance is verified through HVI-tested airflow vs ESP curves and efficiency metrics including SRE and TRE under ASHRAE-defined testing conditions.
