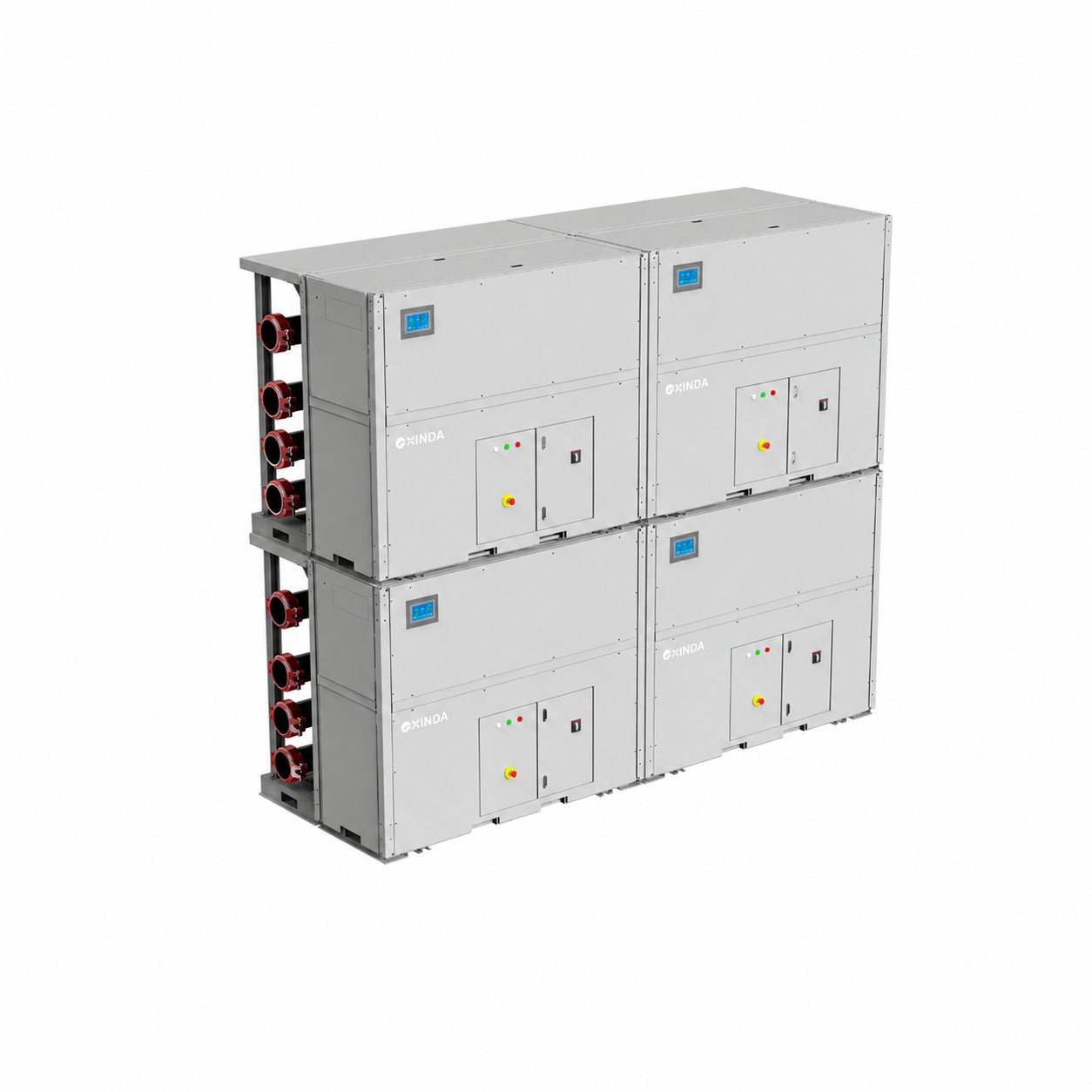

EXINDA FLEX 33.5RT R515B Water-to-Water Scroll Heat Pump Chiller

EXINDA is a global HVAC manufacturer and system provider delivering R515B water-to-water scroll heat pump chillers for North American commercial and institutional hydronic applications.

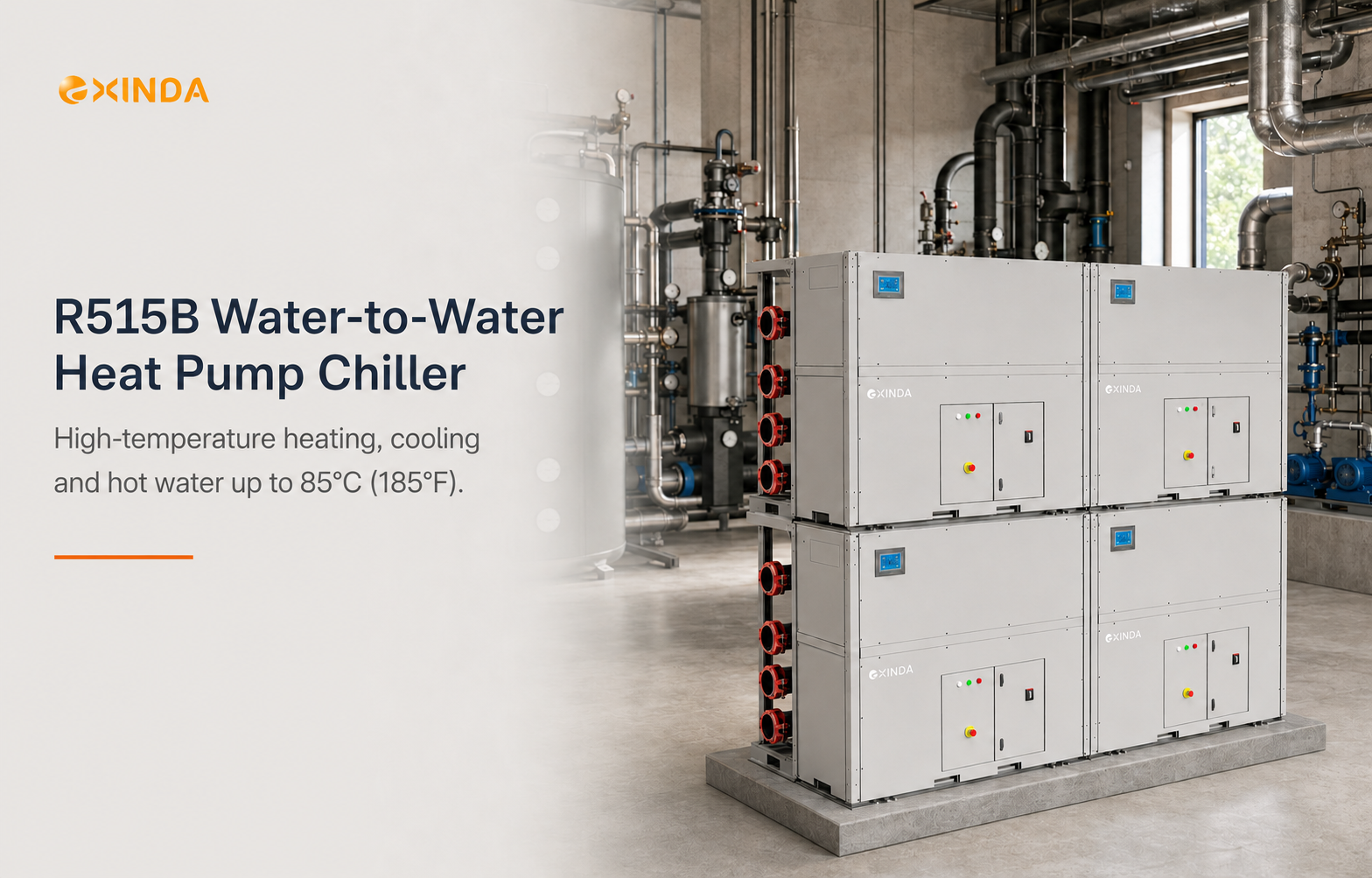

The EXINDA FLEX provides efficient cooling, heating, and high-temperature domestic hot water production. Its modular refrigeration system supports variable building loads and delivers hot water temperatures up to 185°F.

System: Commercial Water-to-Water Heat Pump Chiller
Application: Hydronic Cooling / Heating / High-Temperature DHW
Technology: R515B Dual Scroll Compressor System
Compliance: EN 14511 / ISO 817 / EN 378 / ASME-Certified Heat Exchanger

• 33.5 RT rated cooling capacity and 53 RT rated heating capacity
• 49.6 RT high-temperature heating capacity
• Hot-water temperatures up to 185°F
• R515B refrigerant with A1 safety classification and GWP 293
• 460V / 3-Phase / 60Hz power supply
• Dual scroll compressors with staged capacity control
• Cooling EER up to 4.01 and heating COP up to 4.03
• Dual refrigerant circuits for stable part-load operation
• Shell-and-tube heat exchangers with S316L water-side components
• PLC control with 7-inch HMI and BMS integration
• Multi-unit sequencing control for up to 8 units
• Suitable for commercial buildings, schools, hotels, offices, and distributed hydronic systems
