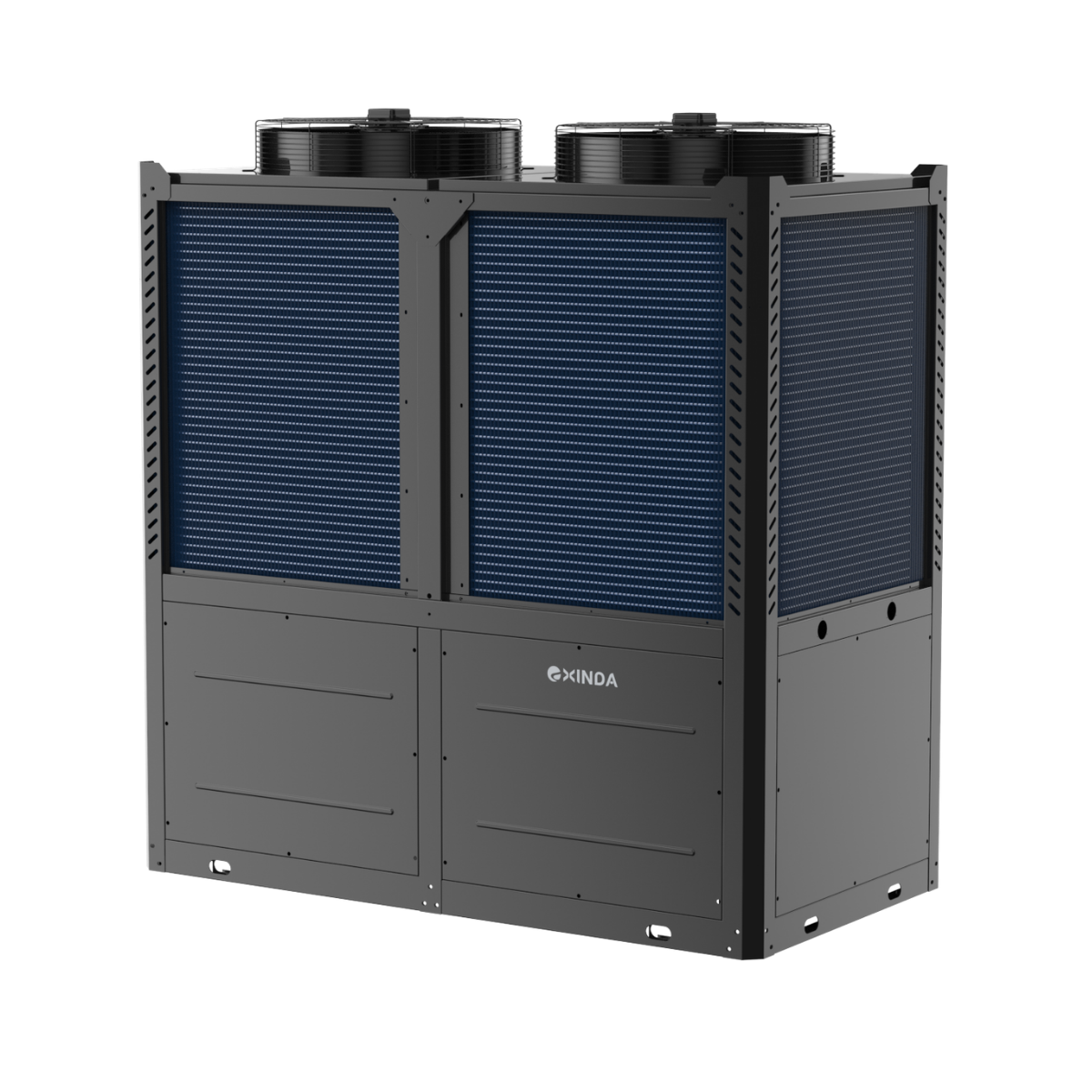

EXINDA FLEX 40 Ton R454B Two-Pipe Modular Heat Pump Chiller
Modular capacity. Year-round building comfort.
Build capacity around your project with EXINDA FLEX 40 Ton R454B two-pipe modular heat pump chiller. Combine modules to serve larger commercial heating and cooling loads and plan phased expansion as the building develops. A shared hydronic loop delivers seasonal heating and cooling to fan coils, air handlers and other compatible terminals.
Core Specifications
| System type | Two-pipe air-to-water heat pump chiller |
| Refrigerant | R454B |
| Operation | Heating or cooling; mode switching |
| Heating capacity | 40 Ton · outdoor 47°F · leaving water 105°F |
| Cooling capacity | 35 Ton · outdoor 95°F · entering/leaving water 54°F / 44°F |
| Power supply | 208 / 460 / 575 V · 3 Ph · 60 Hz |
| Certification | CSA APPROVED, AHRI IN PROGRAM |
Technical Documents and Related Products
Explore the 40 Ton four-pipe model for simultaneous heating and cooling
Modular Heat Pump Chiller Selection Questions
When should I choose two-pipe instead of four-pipe?
Choose two-pipe when the connected zones can share the same heating or cooling mode. Choose four-pipe when the building needs hot and chilled water at the same time.
Which buildings suit this capacity?
Offices, schools, hotels and multifamily buildings with larger seasonal heating and cooling loads can use this model with suitable hydronic terminals.
Can it be part of a boiler upgrade?
Yes. It can provide electric hydronic heating and add chilled-water cooling. A retained boiler can provide supplementary or backup heating as part of the project design.
