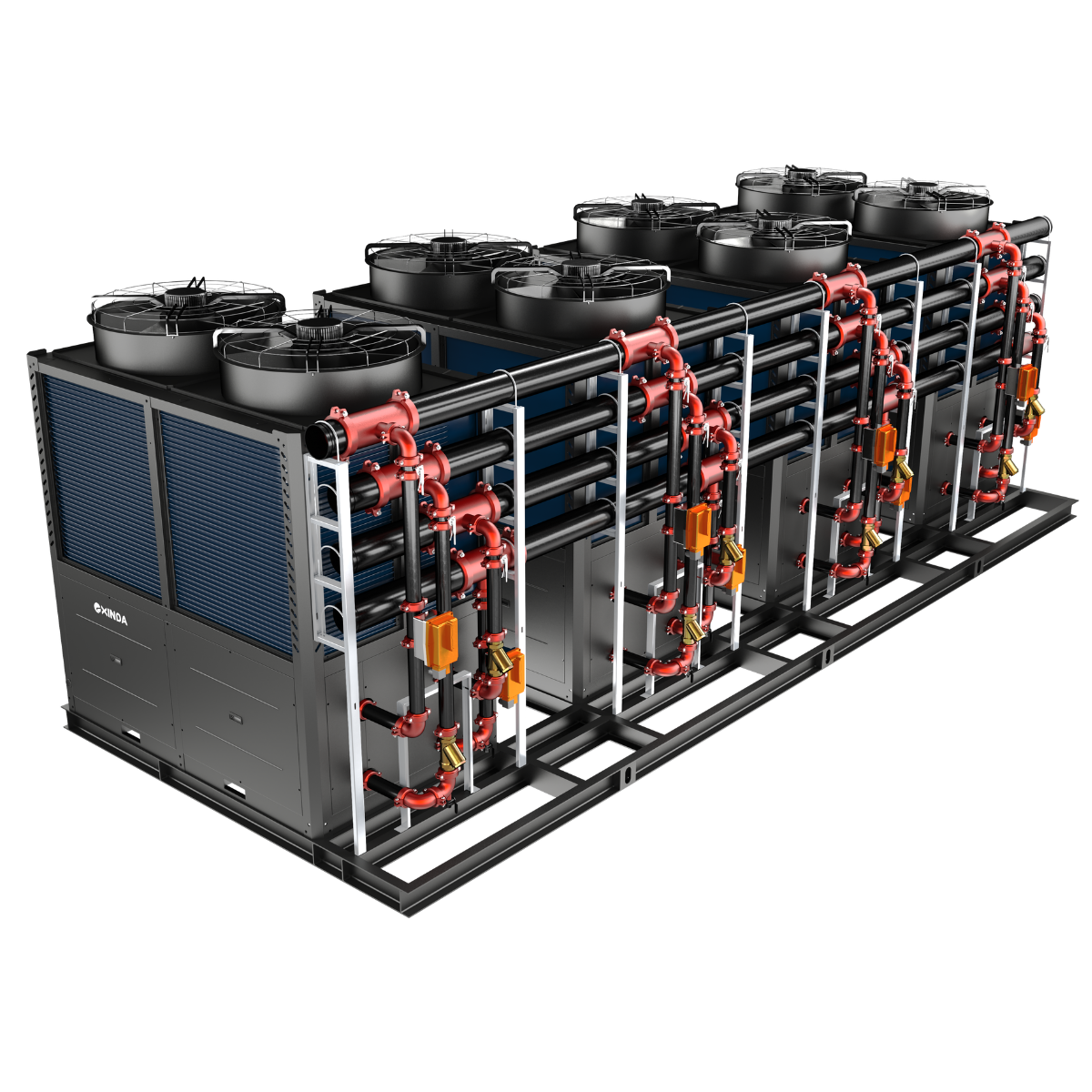

EXINDA SHC 40 Ton R454B Four-Pipe Air-to-Water Heat Pump Chiller

EXINDA is a global HVAC manufacturer and system provider delivering R454B four-pipe air-to-water heat pump chillers with North American configurations for commercial and institutional hydronic applications.

The EXINDA SHC four-pipe heat pump chiller produces chilled water and hot water simultaneously from one outdoor unit. Its heat-recovery design supports buildings with concurrent cooling and heating loads while reducing rejected energy.

Product Information

• Model: FBMBHTF4B2C5
• System Type: Four-Pipe Air-to-Water Heat Pump Chiller
• Refrigerant: R454B
• Compressor Technology: Dual DC Inverter EVI Scroll
• Functions: Cooling / Heating / Simultaneous Cooling and Heating
• Regional Configuration: North American Configuration
• Power Supply: 575V / 3-Phase / 60Hz
• Installation Type: Air-Cooled Outdoor Unit

Key Performance

• 35 Ton nominal cooling capacity at 95°F ambient and 54°F/44°F entering/leaving water temperatures
• 40 Ton heating capacity at 47°F ambient and 105°F leaving-water temperature
• 34 Ton cooling and 48 Ton heating during simultaneous operation
• Combined simultaneous heating and cooling COP up to 8.2 at specified conditions
• Hot-water temperatures up to 140°F at ambient temperatures of -4°F or above
• Hot-water temperatures up to 130°F at ambient temperatures from -13°F to -4°F
• Cooling operation from -4°F to 110°F ambient
• Heating operation from -13°F to 100°F ambient

Key Features

• True four-pipe simultaneous cooling and heating
• Two independent R454B refrigerant circuits
• Independent cooling and heating heat exchangers
• Heat recovery for buildings with mixed thermal loads
• Stepless inverter capacity control
• Intelligent defrost and freeze protection

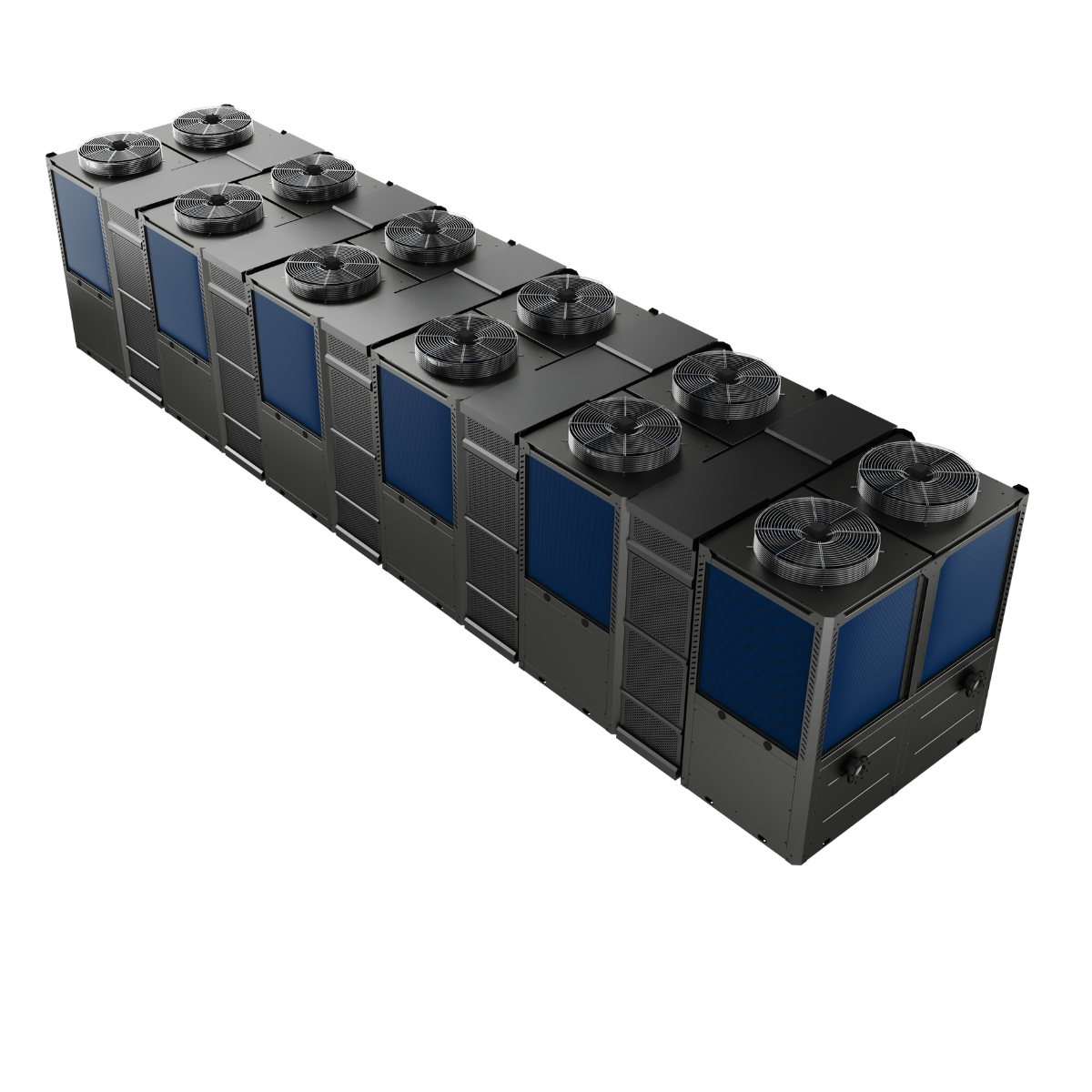

• Cascade control for up to eight units
• BMS integration for centralized building control

Applications

The EXINDA SHC four-pipe heat pump chiller is suitable for hotels, schools, healthcare facilities, offices, multi-residential buildings, industrial facilities, and projects requiring simultaneous chilled-water and hot-water production.

All performance values should be reviewed together with the stated test conditions in the technical submittal.
