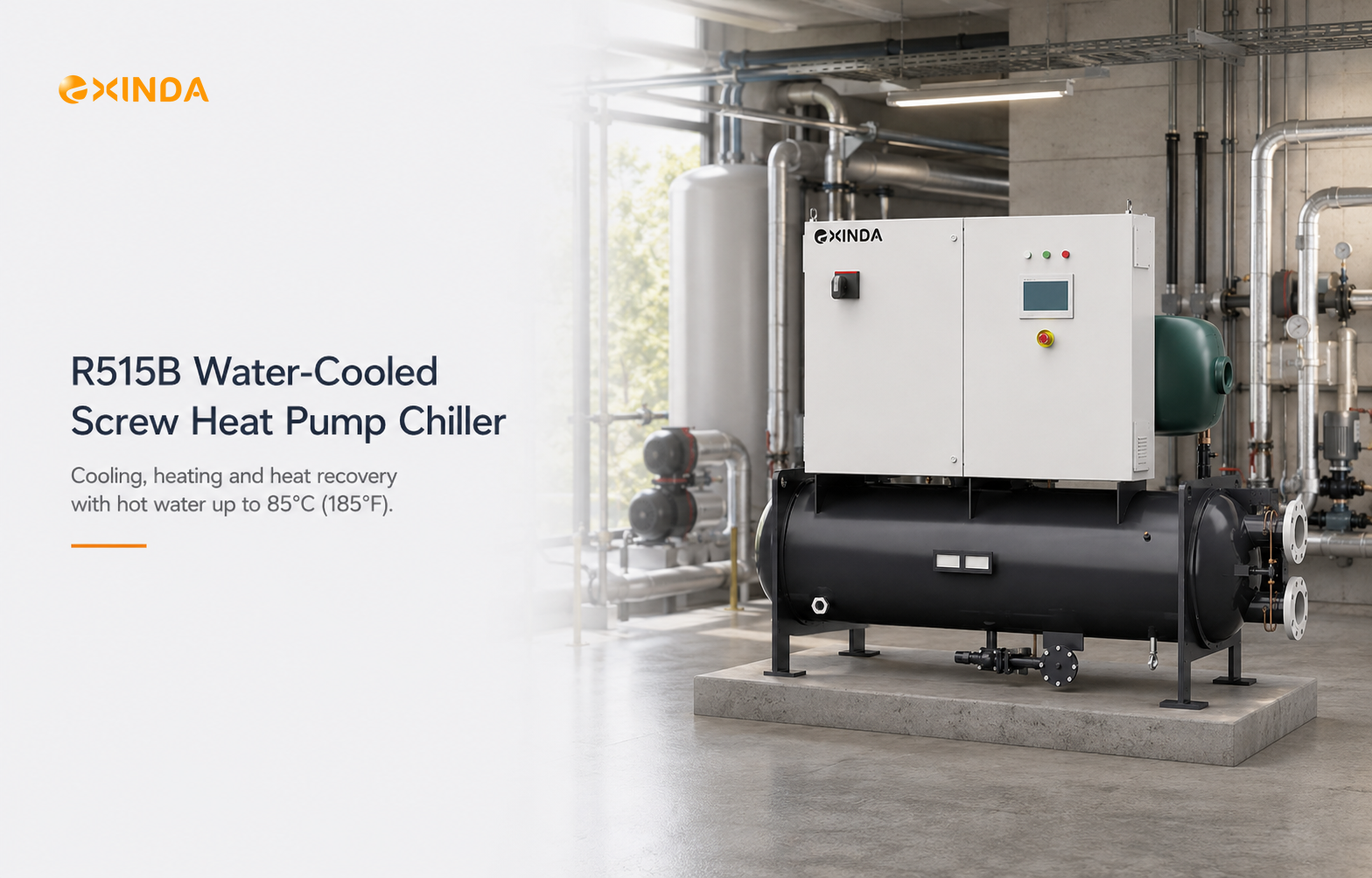

EXINDA 95.8RT Cooling / 140.2RT Heating R515B Inverter Water-Cooled Screw Heat Pump Chiller

EXINDA is a global HVAC manufacturer and system provider delivering R515B water-cooled screw heat pump chillers with North American configurations for commercial, industrial, and heat-recovery applications.

The EXINDA XSUW95A1VA7H is a true four-pipe water-cooled heat pump chiller that provides chilled water and hot water simultaneously. Its inverter screw-compressor design supports year-round cooling, heating, high-temperature hot water, and heat recovery.

Product Information

• Model: XSUW95A1VA7H
• System Type: Water-Cooled Screw Heat Pump Chiller
• Refrigerant: R515B
• Compressor Technology: Inverter Screw Compressor
• Functions: Cooling / Heating / Simultaneous Cooling and Heating / Heat Recovery
• Regional Configuration: North American Configuration
• Power Supply: 480V / 3-Phase / 60Hz
• System Design: True Four-Pipe System
• Pressure-vessel, electrical, and system certification requirements vary by project configuration

Key Performance

• 95.8 USRT rated cooling capacity
• 140.2 USRT rated heating capacity
• Hot-water temperatures up to 185°F

Key Features

• True four-pipe simultaneous chilled-water and hot-water production
• R515B refrigerant with A1 safety classification
• Inverter-driven screw compressor
• Integrated heat-recovery operation
• Electronic expansion valve
• Shell-and-tube evaporator and condenser
• PLC control with real-time system monitoring
• BMS integration for commercial and industrial systems

Applications

The EXINDA R515B water-cooled screw heat pump chiller is suitable for hotels, hospitals, schools, offices, industrial processes, district-energy systems, data centers, agricultural facilities, and waste-heat-recovery applications.

Cooling and heating capacities depend on the applicable entering and leaving water temperatures. Refer to the technical submittal for complete performance conditions.
