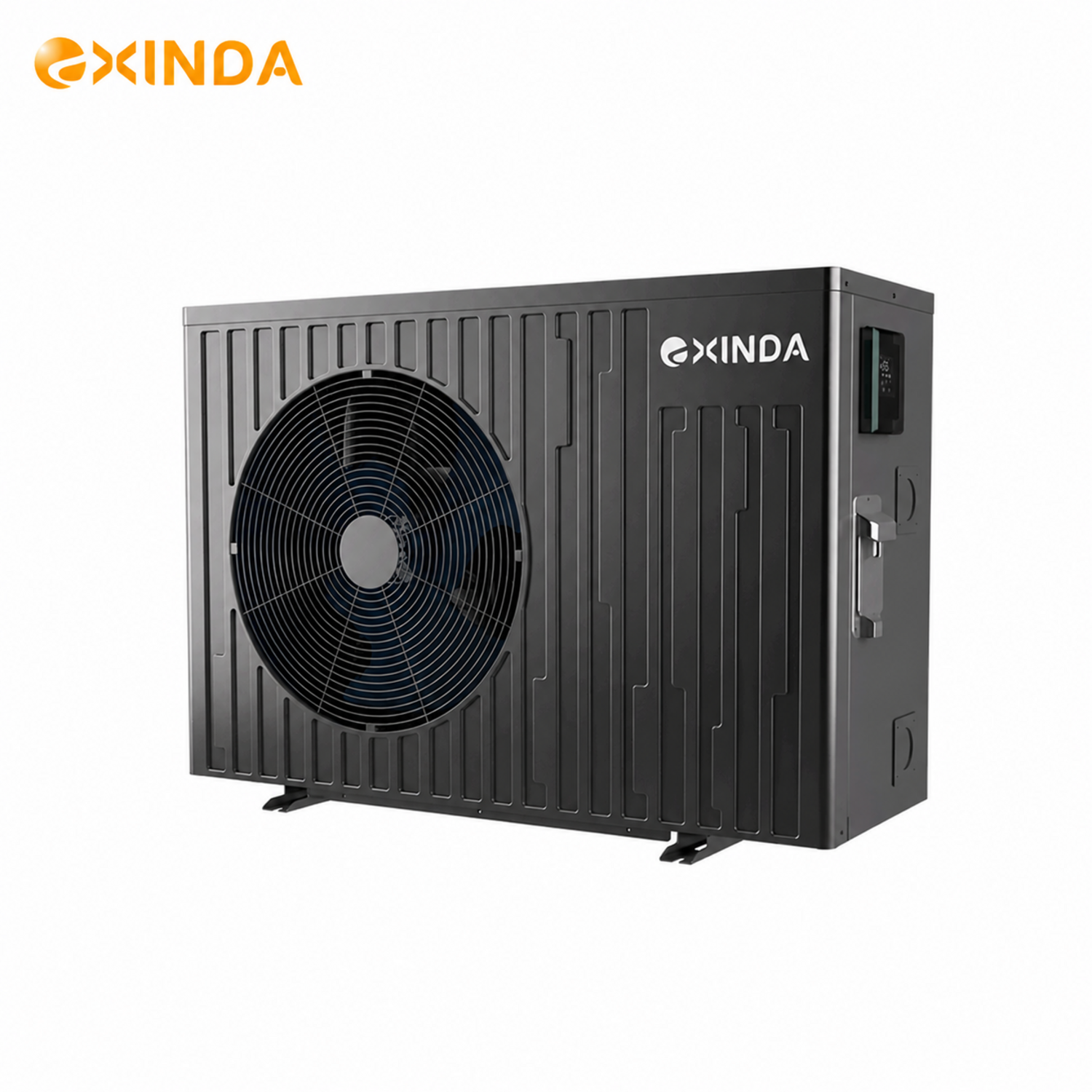

EXINDA 65,000 BTU R32 Inverter Swimming Pool Heat Pump
The EXINDA 65,000 BTU R32 Inverter Pool Heat Pump is designed for residential pools, backyard pools, villas, vacation properties and spas. It combines twin-rotary inverter technology, R32 refrigerant, hot-gas reverse-cycle defrost and a titanium heat exchanger for pool heating and cooling.
Where this model fits
This North American R32 model is positioned for residential pools, backyard pools, villas, vacation properties and spas.
65,000 / 96,000 / 121,000 / 150,000 BTU model comparison
Compare the North American R32 range by capacity, recommended pool volume and measured cold-weather performance.
| Performance | 65,000 BTU | 96,000 BTU | 121,000 BTU | 150,000 BTU |
|---|---|---|---|---|
| Nominal heating capacity | 65,000 BTU/h | 96,000 BTU/h | 121,000 BTU/h | 150,000 BTU/h |
| Recommended pool volume With pool cover | 10,000–17,000 gal | 15,000–24,000 gal | 21,000–32,000 gal | 26,000–42,000 gal |
| Measured heating output at approx. 50°F | 40,300 BTU/h | 68,800 BTU/h | 67,500 BTU/h | 88,000 BTU/h |
| COP at approx. 50°F | 4.18 | 3.44 | 3.21 | 3.28 |
| Sound pressure at 10 ft / 3 m | 38–49 dB(A) | 42–50 dB(A) | 43–51 dB(A) | 45–52 dB(A) |
| Certification | CSA / UL | CSA / UL | CSA / UL | CSA / UL |
Measured output and COP are condition-specific laboratory results. Final selection should consider pool size, cover use, local ambient conditions, target water temperature and required heat-up time.
Core specifications
| Model | FBBMHSC1B2V4U8 |
| Heating capacity | 65,000 BTU/h (19 kW) |
| Recommended pool volume | 10,000–17,000 gal / 40–65 m³ with pool cover |
| Refrigerant | R32 |
| Certification | CSA Certified and UL Listed |
| Compressor | Twin-rotary inverter |
| Defrost | Hot-gas, four-way valve reverse cycle |
| Sound | 38–49 dB(A) at 10 ft / 3 m |
| Power supply | 220–240 V / 1 Ph / 50–60 Hz |
| Heat exchanger | Titanium |
| Functions | Pool heating and cooling |
For distributor & project enquiries
Technical Documents
Download the model-specific technical submittal for performance data, electrical requirements, dimensions and installation reference.
Distributor FAQ
Is this model intended for the North American market?
Yes. The product information lists CSA certification and UL listing, with a 220–240 V single-phase 50–60 Hz supply.
How should this pool heat pump be selected?
Consider pool volume and surface area, pool cover, local ambient conditions, target water temperature, required heat-up time and operating season.
Does nameplate capacity remain constant in colder weather?
No. The measured performance table above shows that heating output and COP vary with outdoor conditions.
What should I send for distributor pricing or project selection?
Provide your company, country or region, pool size, target water temperature, electrical supply, required quantity and expected schedule.
Partner With EXINDA
Pool Distributors & Dealers
Discuss North American model selection, distributor pricing, technical documents and channel requirements with EXINDA.
Pool Contractors & Project Suppliers
Send pool size, design conditions and electrical requirements for project selection support.
