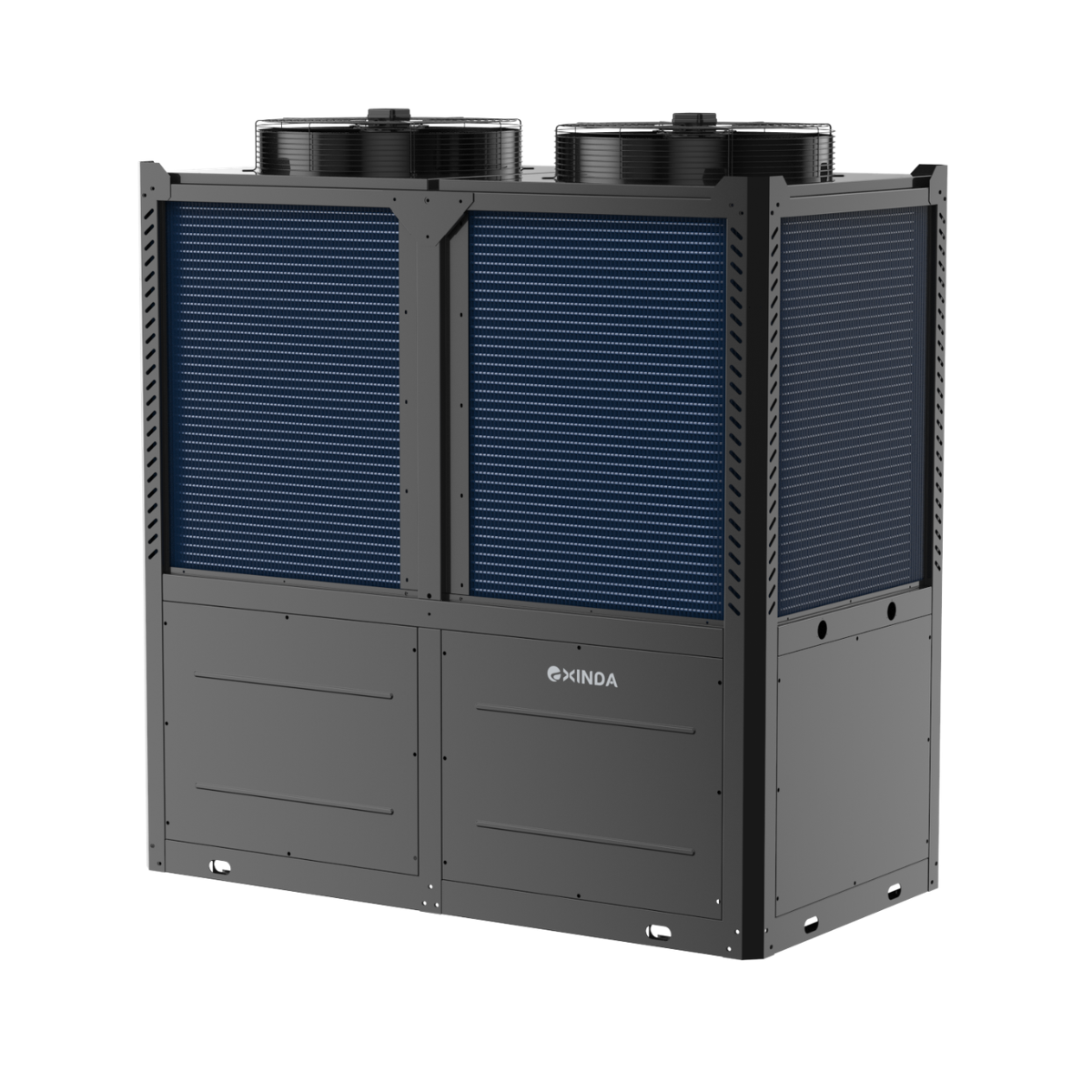

EXINDA 24TON R32 EVI Inverter Air-to-Water Heat Pump

EXINDA is a global HVAC manufacturer and system provider delivering R32 EVI commercial air-to-water heat pumps with North American configurations for commercial and multi-residential hydronic applications.

The EXINDA 24 Ton R32 EVI heat pump provides central heating, cooling, and domestic hot-water production for larger commercial buildings. Its EVI inverter design supports low-ambient heating, modular capacity expansion, and intelligent system control.

Product Information

• Nominal Capacity: 24 Ton
• System Type: Commercial Air-to-Water Heat Pump
• Refrigerant: R32
• Compressor Technology: Twin-Scroll EVI Inverter
• Functions: Hydronic Heating / Cooling / Domestic Hot Water
• Regional Configuration: North American Configuration
• Power Supply: 575V / 3-Phase / 60Hz
• Installation Type: Air-Cooled Outdoor Unit
• Compliance Status: Designed for evaluation to applicable North American CSA and UL requirements

Key Features

• 24 Ton nominal-capacity platform
• R32 refrigerant with lower GWP than R410A
• EVI inverter technology for low-ambient heating performance
• Heating operation down to -25°C, subject to operating conditions
• Heating, cooling, and domestic hot-water functions
• Smart freeze protection and demand-based defrost control
• Cascade control for up to eight units
• Combined nominal capacity up to 192 tons with eight units
• Compatible with fan coils and other commercial hydronic terminals
• BMS integration and centralized system control
• Air-cooled design without a cooling tower

Applications

The EXINDA 24 Ton R32 heat pump is suitable for hotels, restaurants, multi-residential buildings, healthcare facilities, schools, offices, sports facilities, and other commercial hydronic systems.

Operating limits, water temperatures, performance, controls, and certification status should be verified against the technical submittal for the selected model.
