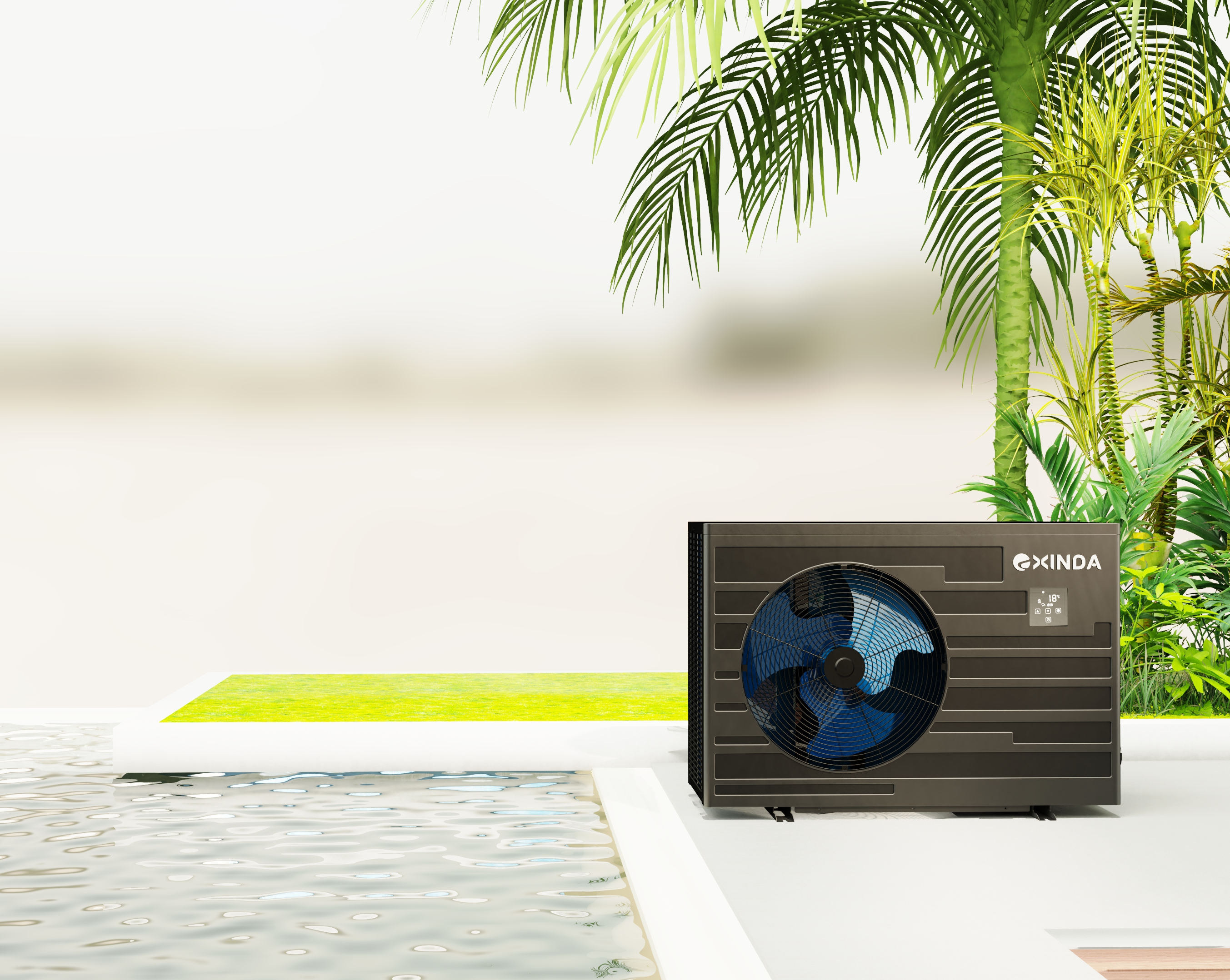

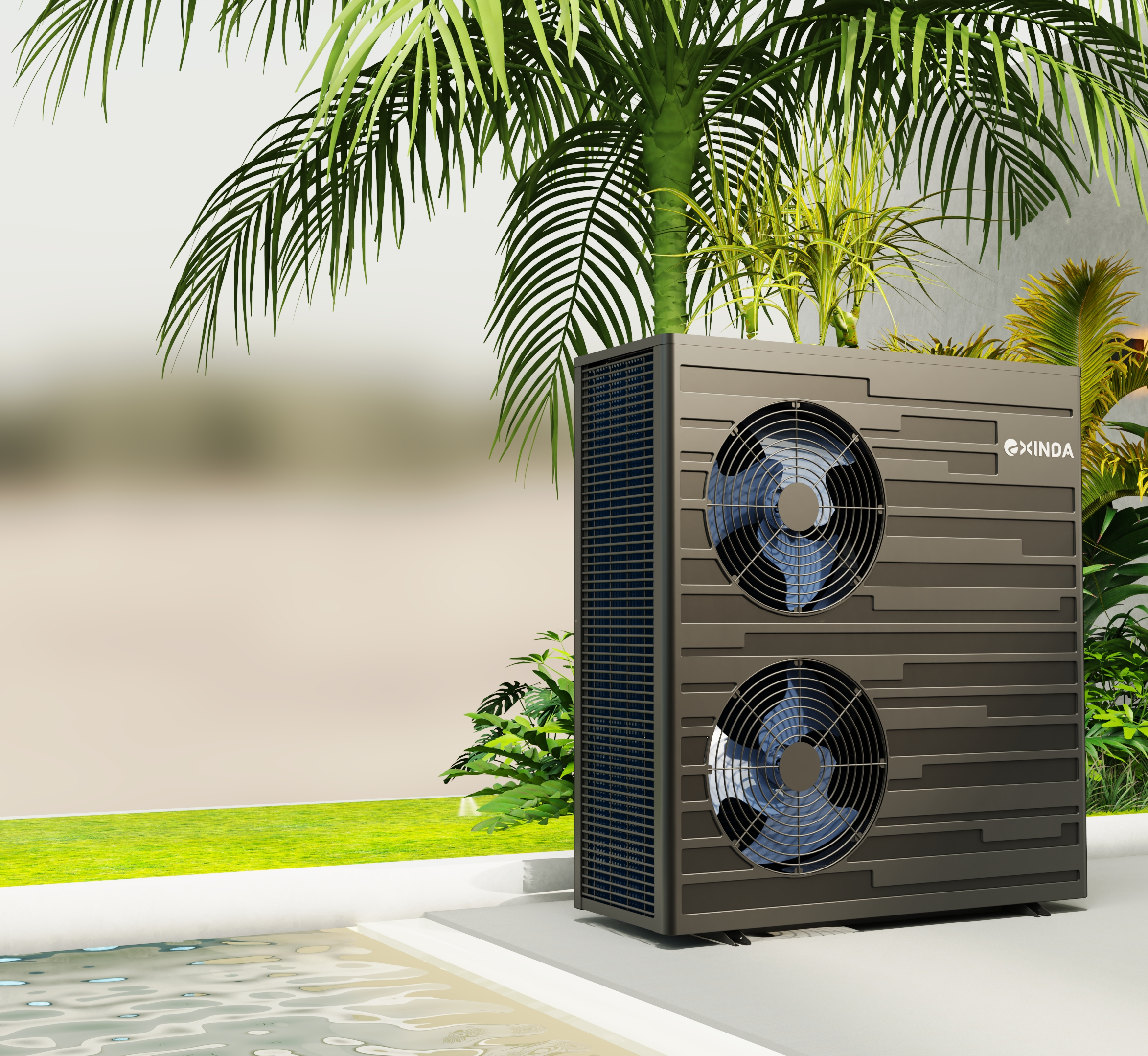

12KW-18KW Powerful Heating Heat Pump for Domestic Swimming Pools 220-240V~ /1Ph~50Hz
R32 Pool & Spa Heat Pump for Resort or Hotel Pools, Backyard Pools and Children's Play Areas.
Design and Structure:
- Power Supply: 220-240V~/1Ph~50Hz
- Circuit Breaker: 15 Amps
- Sound Pressure: ＜55 dB(A)
- Net Dimensions L/W/H:960*658*341 mm
Wide Operating Temperature Range: Both models operate in temperatures from -10°C to 43°C, making them suitable for diverse climates and seasons. Optimized Water Circulation: Recommended water flow rates of 4-6 m³/h for the XDSPH120C3E and 8-10 m³/h for the XDSPH180C3E ensure efficient heating and water circulation. Efficient Energy Use: Showcasing COP (Coefficient of Performance) ranges, the XDSPH120C3E achieves 15.2-7.6, while the XDSPH180C3E maintains 15.9-6.1, emphasizing their energy-saving capabilities.
Details
Parameters
Product Infomation
Product Parameter
| Specification | XDSPH120C3E | XDSPH180C3E |
|---|---|---|
| Model | XDSPH120C3E | XDSPH180C3E |
| Heating Capacity (KW) | 12 | 18 |
| Recommended Pool Volume (m³) | 30~55 | 40~75 |
| Operating Air Temperature (℃) | -10～43°C | |
| Performance Condition 1 | Air Temp, Water Temp, Humidity 26℃, 26℃, 80% | |
| - Heating Capacity (KW) | 12.7 | 18.5 |
| - COP Range | 15.2~7.6 | 15.9~6.1 |
| - COP at 50% Capacity | 11.5 | 10.9 |
| Performance Condition 2 | Air Temp, Water Temp, Humidity 15℃, 26℃, 70% | |
| - Heating Capacity (KW) | 8.9 | 13.3 |
| - COP Range | 7.9~4.85 | 7.9~4.8 |
| - COP at 50% Capacity | 6.9 | 6.3 |
| Sound Pressure at 1m dB(A) | 42~52 | 43~55 |
| Sound Pressure at 1m (50% Capacity) dB(A) | 45 | 47 |
| Sound Pressure at 10m dB(A) | 22~31 | 23~35 |
| Compressor Brand | GMCC | |
| Casing Type | ABC Casing | |
| Fan Quantity | 1 | |
| Fan Power Input (W) | 75 | 75 |
| Fan Speed (RPM) | 400~800 | 500~850 |
| Power Supply | 220-240V/1Ph50Hz | |
| Rated Input Power at 15℃ Air (KW) | 0.32~2.7 | 0.37~3.5 |
| Rated Input Current at 15℃ Air (A) | 1.34~11.4 | 1.6~14.5 |
| Circuit Breaker (Amps) | 15 | |
| Max Input Current (A) | 10 | 17 |
| Power Cord Cross-Sectional Area (mm²) | 3*4 | 3*6 |
| Fan Direction | Horizontal | |
| Recommended Water Flow Rate (m³/h) | 4~6 | 8~10 |
| Water Inlet/Outlet Pipe Size (mm) | 50 | |
| Net Dimensions (L/W/H mm) | 960*658*341 | |
| Refrigerant | R32 | |
The Exinda pool heat pumps boast a high coefficient of performance (COP), and suitable for many occasions. This article is about 40,000-65,000 BTU pool& spa heat pump.
Wide Operating Temperature Range
The Exinda pool heat pumps are designed to perform efficiently across a wide range of temperatures.Whether you're dealing with the chill of winter or the heat of summer, the heat pumps can handle air temperatures from 14°F to 110°F (-10°C to 43°C). This flexibility ensures your pool stays at an ideal temperature, no matter the season.
Smart Control
Quiet Operation
Durable Construction
Environmental Friendliness
High Performance in Various Conditions
Flexible Installation
Advanced Defrosting System
Comprehensive Heating Solutions
Who is EXINDA?
Why choose EXINDA as your Supplier?
10+ Years of HVAC Experience
Founded in 2012, Exinda is a national high-tech enterprise specialized in manufacturing Air to Water heat pump with strong R&D strength and providing comprehensive energy-saving solutions for clients from all over the world.
One-Stop Product Line
Exinda has a complete heat pump supply chain with products including Swimming Pool Heat Pump, Residential Heat Pump, Commercial Heat Pump, ERV & HRV ventilator etc.
OEM / ODM Customization Service
At Exinda, we offer OEM/ODM services with a wide range of customization options, including logo, color, functionality, and material.
Marketing Ads
Our professional marketing and advice support sets us apart from other manufacturers. To drive your business forward, we offer on-line sales and marketing assistance, including product selling points, catalogs, introduce videos.
Production Scale
Exinda boasts a 60,000 ㎡ factory facility equipped with 5 specialized laboratories, covering 4 major product lines. Our team of over 600 skilled workers ensures efficient mass production, enabling us to manufacture 60,000 units annually while maintaining a consistent, high-quality output.
Reliable Support
Exinda is committed to providing round-the-clock support throughout the entire sales process, addressing inquiries and concerns before and after sales. We're here to resolve any questions you may have regarding our products, technology, and delivery logistics.
