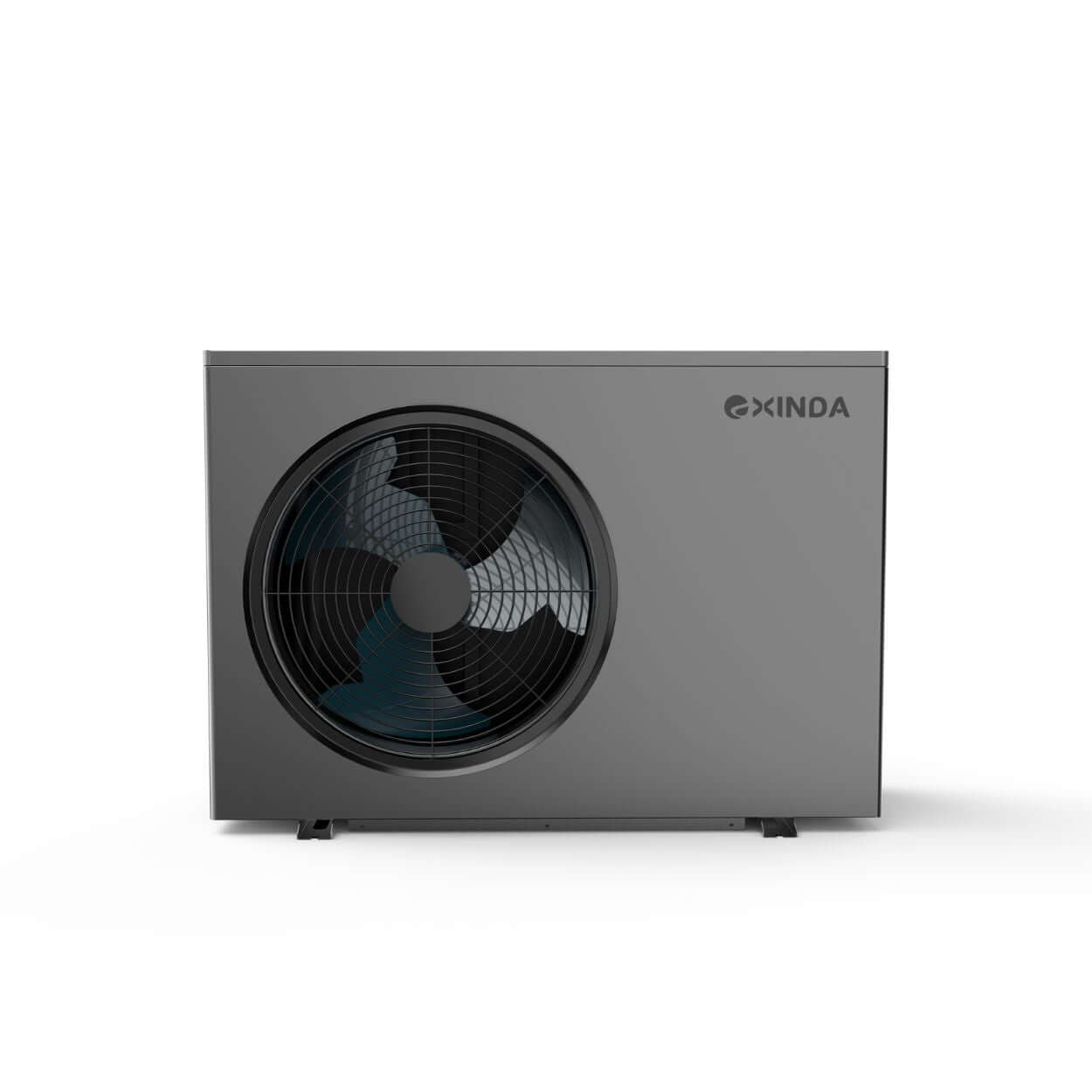

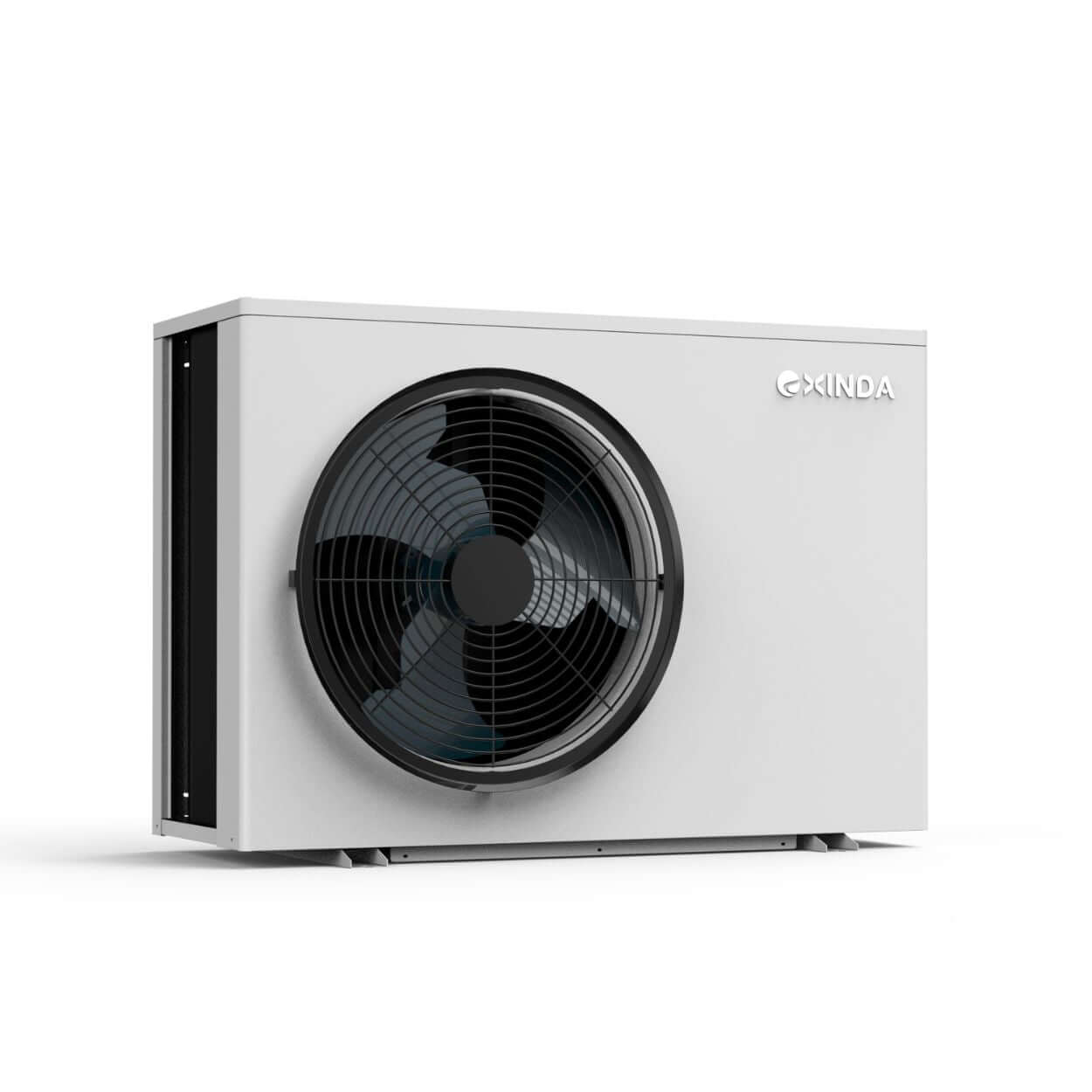

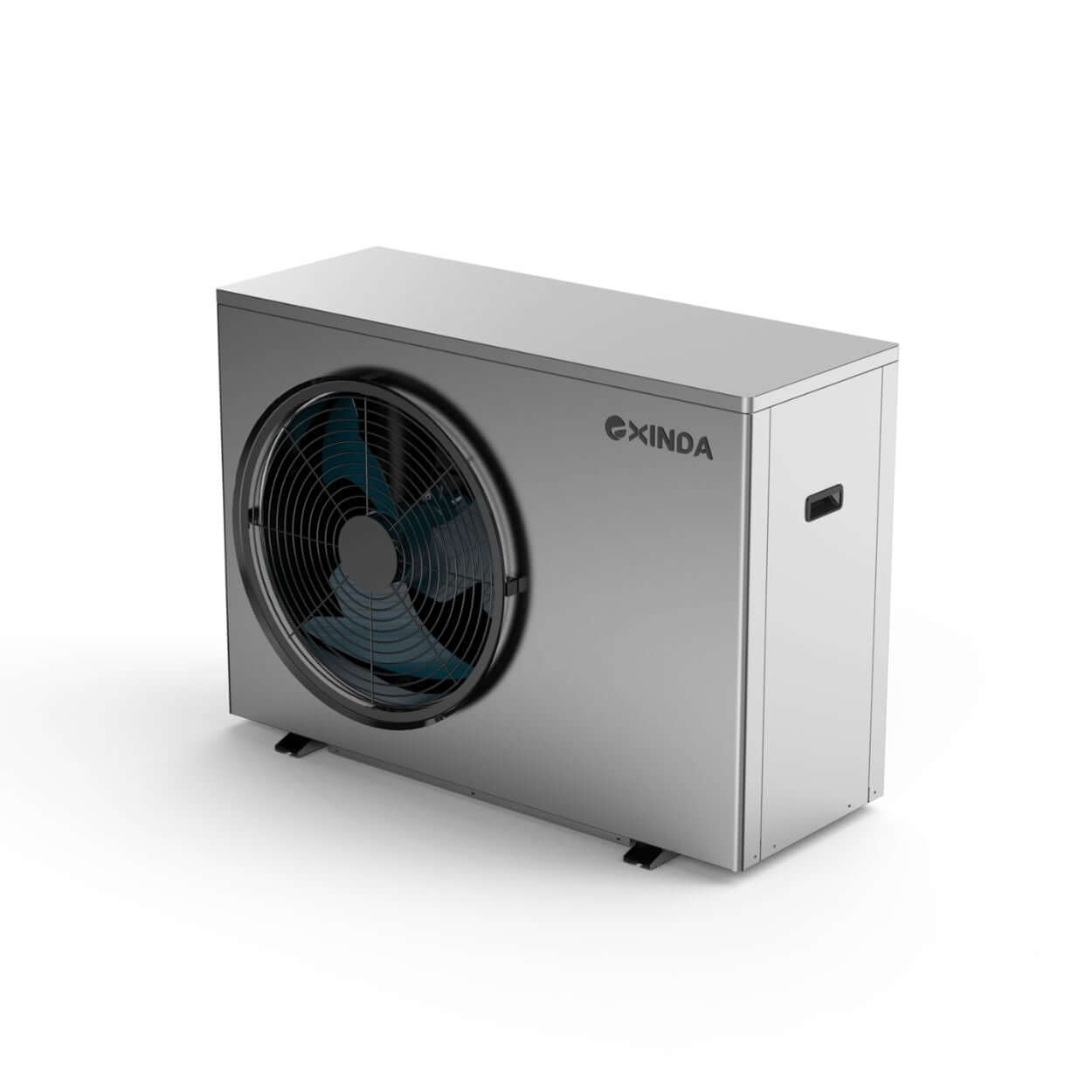

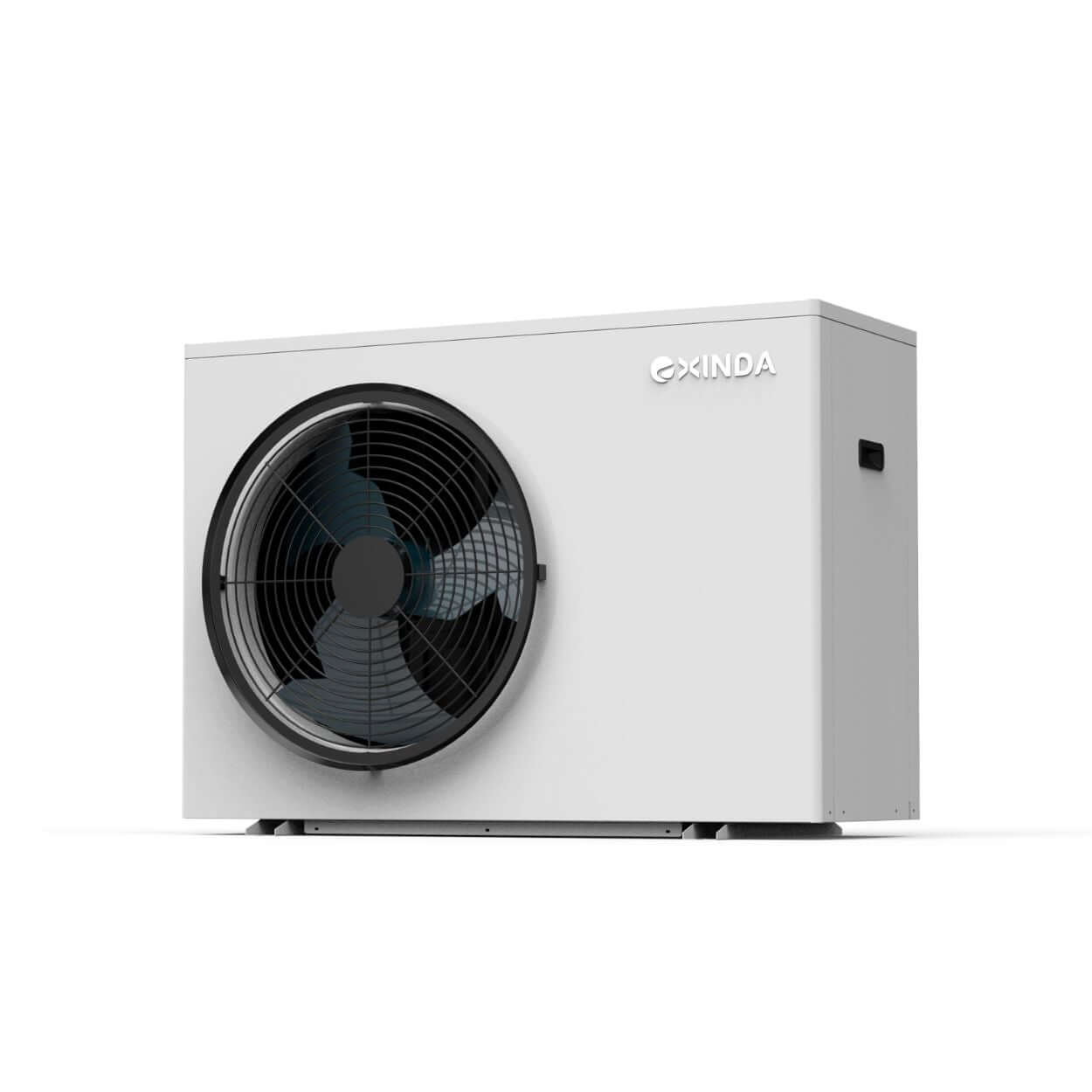

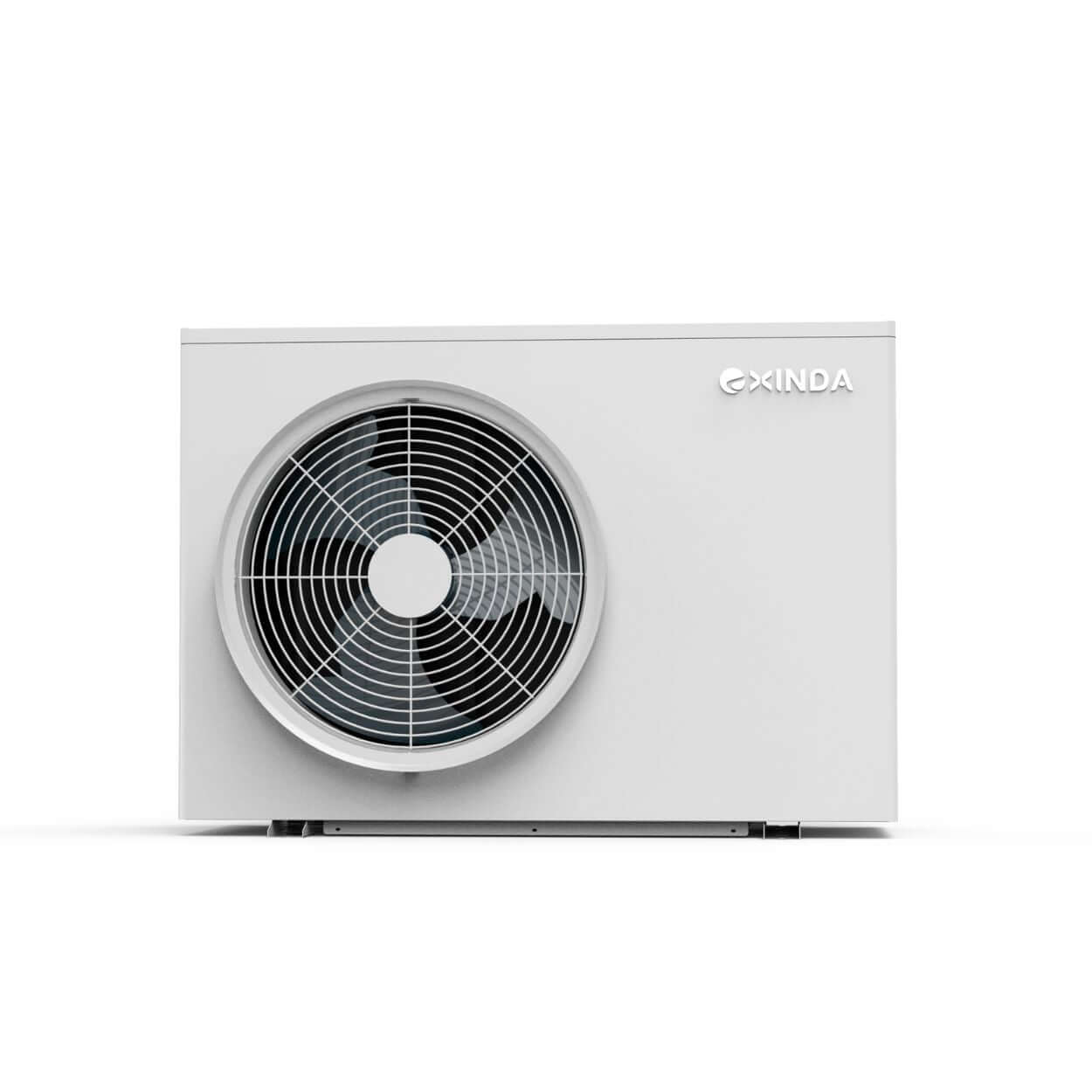

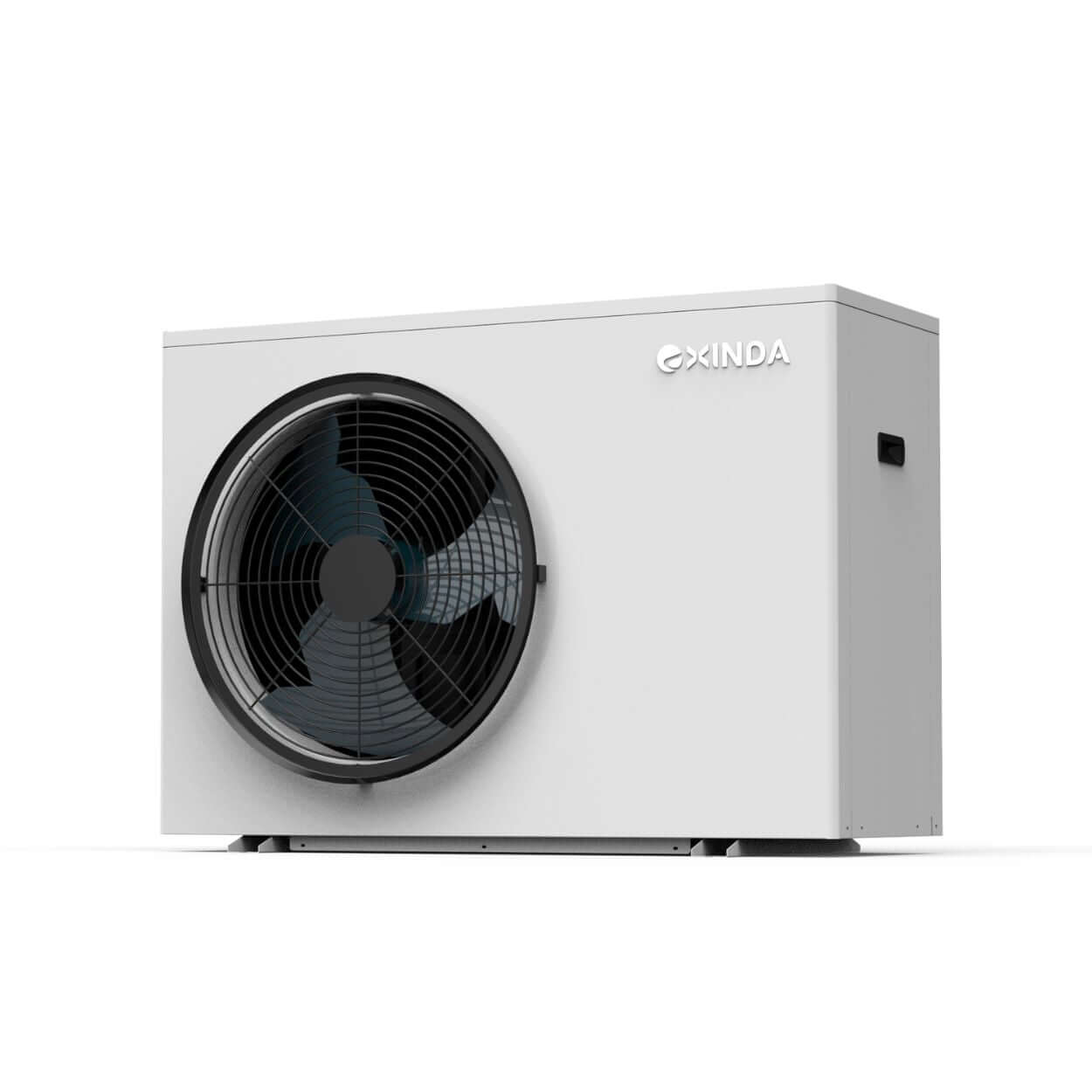

Residential R290 Inverter Air to Water Heat Pump
Brand New R290 Heat Pump - Storm Series
Efficient for House Heating, Cooling and Domestic Hot Water
R290 refrigerant can achieve a high water temperature up to 75℃, meanwhile, heat pump installation is convenient and the original gas boiler system like radiators and water pipes can be kept, achieving integrated multi-heat source and energy-saving. With less CO2 emission, LET'S TAKE CARE OF OUR GREEN PLANET TOGETHER!
Features:
-DC Inverter Technology: higher COP and greatly save electricity bills.
-Low Noise Mode: super quiet operation as low as 38dB(A).
-Smart Control System: intelligent display touch screen, remote diagnostics and APP, available for various well-documented interface such as RS485 Modbus.
-Weather-dependent Curve: increase SCOP and keep at the optimum comfort level for customers, considerably save energy.
-Anti-frozen and Intelligent Deforest Mode: minimize energy consumption and extend the lifespan of heat pump, maintain excellent performance in extremely cold area.
-Safe Structure Inner Design: automatically monitor heat pump system and immediately trigger switches to avoid refrigerant gas leakage.
Certifications: ERP, CE, UL/ETL, etc.
Details
Parameters
| Model No. | XDASH06C3A | XDASH09C3A | XDASH12C3A | XDASH15D3A | XDASH20D3A | |
|---|---|---|---|---|---|---|
| Power Supply | V/ph/Hz | 220~240 / 1 / 50 | 220~240 / 1 / 50 | 220~240 / 1 / 50 | 380~415 / 3 / 50 | 380~415 / 3 / 50 |
| Energy Class (35°C SCOP) | / | A+++ | A+++ | A+++ | A+++ | A+++ |
| Energy Class (55°C SCOP) | / | A++ | A++ | A++ | A++ | A+++ |
| Min./Max. Heating Capacity (1) | KW | 2.07~6.82 | 2.99~8.86 | 4.58~11.83 | 5.64~15.72 | 7.81~22.32 |
| EI. heating power input min./max.(1) | W | 476~1572 | 582~2374 | 900~2935 | 1121~4041 | 1603~5818 |
| COP min./max.(1) | / | 3.90~5.14 | 3.73~5.13 | 3.81~5.10 | 3.87~5.10 | 3.84~5.12 |
| Min./Max. Heating Capacity (2) | KW | 1.95~5.91 | 2.73~8.58 | 3.54~11.43 | 5.06~15.22 | 7.60~20.84 |
| EI. heating power input min./max.(2) | W | 459~1830 | 656~2751 | 853~3586 | 1191~4812 | 1833~6584 |
| COP min./max.(2) | / | 3.23~4.25 | 3.12~4.16 | 3.19~4.15 | 3.16~4.20 | 3.17~4.14 |
| Min./Max.cooling Capacity (3) | KW | 1.73~5.47 | 2.92~7.44 | 3.53~9.89 | 6.81~12.20 | 9.39~16.72 |
| EI. cooling power input min./max.(3) | W | 529~1252 | 676~2304 | 816~3003 | 1551~3741 | 2139~5159 |
| E.E.R min./max.(3) | / | 3.27~4.37 | 3.23~4.32 | 3.29~4.33 | 3.26~4.39 | 3.24~4.39 |
| Min./Max.cooling Capacity (4) | KW | 0.85~4.71 | 1.86~5.30 | 2.17~7.05 | 4.81~9.87 | 6.52~13.71 |
| EI. cooling power input min./max.(4) | W | 347~1615 | 610~2141 | 714~2791 | 1558~3584 | 2149~4943 |
| E.E.R min./max.(4) | / | 2.45~2.85 | 2.48~3.05 | 2.53~3.04 | 2.75~3.08 | 2.77~3.03 |
| Refrigerant/ Proper Input | kg | R290/0.55kg | R290/0.7kg | R290/0.9kg | R290/1.1kg | R290/1.5kg |
| Fan Motor Type | / | DC motor | DC motor | DC motor | DC motor | DC motor |
| Fan Quantity | / | 1 | 1 | 1 | 2 | 2 |
| Compressor | Brand | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY |
| Plate heat exchanger | Brand | Alfa Laval | Alfa Laval | Alfa Laval | Alfa Laval | Alfa Laval |
| Circulation Pump | Brand | Wilo | Wilo | Wilo | Wilo | Wilo |
| Max. flow temp. in heating mode | ℃ | 75 | 75 | 75 | 75 | 75 |
| Min. flow temp. in heating mode | ℃ | 20 | 20 | 20 | 20 | 20 |
| Min. flow temp. in cooling mode | ℃ | 7 | 7 | 7 | 7 | 7 |
| Circulation Pump Water lift | m | 7.5 | 7.5 | 7.5 | 12.5 | 12.5 |
| Water Pressure Drop (max) | kpa | 30 | 30 | 30 | 30 | 45 |
| Water connection | inch | G 1 | G 1 | G 1 | G 1 | G 1-1/4 |
| Operating Ambient Temp | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 |
| Noise level (indoor/outdoor) | dB(A) | 42/52 | 42/52 | 42/52 | 42/52 | 42/58 |
| Unit Dimensions (L/W/H) | mm | 1150×520×755 | 1200×550×855 | 1200×550×855 | 1250×550×1420 | 1250×550×1420 |
| Net Weight | kg | 88 | 104 | 112 | 164 | 185 |
| (1) Heating condition: water inlet/outlet temperature:30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; (2) Heating condition: water inlet/outlet temperature:40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; (3) Cooling condition: water inlet/outlet temperature:23℃/18℃, Ambient temperature: DB 35℃/WB 24℃; (4) Cooling condition: water inlet/outlet temperature:12℃/7℃, Ambient temperature: DB 35℃/WB 24℃; |
||||||
Product Infomation
Eco-Friendly R290 Refrigerant
R290 distinctive advantages compared to other alternative refrigerants:Improve COP up to 4.8, reducing running costs; Low GWP of 3, exceptionally eco-friendly and benefit to carbon neutrality, curbing global warming; Water temperature can achieve up to 75℃ with higher energy efficiency; Legionella prevention in water temperature up to 65°C and higher; Wide working range from –25°C to +46°C
Heat Pumps Play a Significant Role in Decarbonizing Heating Industry
We provide comprehensive eco-energy solutions for your smart home and low-carbon green life.
DC Inverter Technology
Designed to withstand the extremely cold condition, Exinda heat pumps have passed the extremely cold operation test, it can stably operate at -25°C, maintain high COP and reliable stability. Different from fixed speed systems, inverters automatically ramps up and down by the variable speed compressor, which means it can adjust the output needed at the lowest energy consumption based on the ambient conditions as well as maintain temperature at the most comfortable level. Therefore, it achieves higher COP, more efficient heating/cooling & hot water even under extremely cold climate, and greatly saves energy costs, cut down electricity bills.
Low Noise Mode, Super Quiet
By Exinda upgrade technology and the unique soundproof internal structure design, the sound pressure of Storm Series Air to Water Heat Pump is kept to as low as 38dB(A) at 2.1 meter distance (Min. Flow).
Smart Control System
Users are able to remotely set water temperature and room temperature, change settings and check running status via computers (web server) or mobile phone (APP). With DTU Module and Electric Wi-Fi Control, you can pre-heat or cool a room no matter where you are. Besides, from performance monitoring to predictive logic & analytics, our Intelligent IoT System is a cost-efficient way to diagnose failing issue, automatically adjust the operation logics and directly solve the problem at the back-end, increase the security, uptime and reliability of your heat pump. APP and remote diagnostics are very crucial in Exinda system. Hence, we have an open API for connecting to Energy Management Systems and Smart Home Applications with capable and well-documented interface (e.g.RS485, Modbus).
Hybrid Heating System
With Modbus(RS485) Interface, Exinda Integrate Heat Pump can be connected to other energy source such as fuel boiler, solar PV panel， pellet boiler to achieve energy saving, based on local energy policy and user's preference. It will be greatly helpful in extremely cold area.
Weather-dependent Curve
The weather-dependent heating curve plays an important role in the significant increment of the SCOP of the unit.As the figure showing, when the house weather condition (outside temperature) is at A2, the flow temperature is at B1, and it will increase to be at B2 when the house weather condition gets cold and drops to A1.The system keeps monitoring the current ambient temperature so as to automatically immediately adjust the flow temperature in opposite direction to achieve the desired optimum comfort level. Therefore, customers can always use the most comfortable outlet water temperature under changing weather condition and different circumstance (e.g. heating demand, insulation levels, etc).In this way, the weather-dependent operation greatly reduces energy consumption.
Anti-Frozen and Intelligent Defrost Mode
With the intelligent defrost mode, Exinda heat pump can automatically detect the forming frost on the outdoor coil and initiate a defrost cycle to melt it away, maintaining the high heating efficiency of the heat pump. Preventing frost/ice from building up in the outdoor unit in cold climate conditions considerably contributes to minimizing energy consumption, avoid unnecessary wear and tear on the equipment and extend longer heating operation time.
Main Component and Dedicated Structure
Exinda Heat Pump is designed with a comprehensive and rigorous logic system, which controlled by the intelligent console software PCBA to increase the security, efficiency and reliability of the unit operation.
Installation Guide
Installation with Hydrobox
| Model No. | XDASH06C3A | XDASH09C3A | XDASH12C3A | XDASH15D3A | XDASH20D3A | |
|---|---|---|---|---|---|---|
| Power Supply | V/ph/Hz | 220~240 / 1 / 50 | 220~240 / 1 / 50 | 220~240 / 1 / 50 | 380~415 / 3 / 50 | 380~415 / 3 / 50 |
| Energy Class (35°C SCOP) | / | A+++ | A+++ | A+++ | A+++ | A+++ |
| Energy Class (55°C SCOP) | / | A++ | A++ | A++ | A++ | A+++ |
| Min./Max. Heating Capacity (1) | KW | 2.07~6.82 | 2.99~8.86 | 4.58~11.83 | 5.64~15.72 | 7.81~22.32 |
| EI. heating power input min./max.(1) | W | 476~1572 | 582~2374 | 900~2935 | 1121~4041 | 1603~5818 |
| COP min./max.(1) | / | 3.90~5.14 | 3.73~5.13 | 3.81~5.10 | 3.87~5.10 | 3.84~5.12 |
| Min./Max. Heating Capacity (2) | KW | 1.95~5.91 | 2.73~8.58 | 3.54~11.43 | 5.06~15.22 | 7.60~20.84 |
| EI. heating power input min./max.(2) | W | 459~1830 | 656~2751 | 853~3586 | 1191~4812 | 1833~6584 |
| COP min./max.(2) | / | 3.23~4.25 | 3.12~4.16 | 3.19~4.15 | 3.16~4.20 | 3.17~4.14 |
| Min./Max.cooling Capacity (3) | KW | 1.73~5.47 | 2.92~7.44 | 3.53~9.89 | 6.81~12.20 | 9.39~16.72 |
| EI. cooling power input min./max.(3) | W | 529~1252 | 676~2304 | 816~3003 | 1551~3741 | 2139~5159 |
| E.E.R min./max.(3) | / | 3.27~4.37 | 3.23~4.32 | 3.29~4.33 | 3.26~4.39 | 3.24~4.39 |
| Min./Max.cooling Capacity (4) | KW | 0.85~4.71 | 1.86~5.30 | 2.17~7.05 | 4.81~9.87 | 6.52~13.71 |
| EI. cooling power input min./max.(4) | W | 347~1615 | 610~2141 | 714~2791 | 1558~3584 | 2149~4943 |
| E.E.R min./max.(4) | / | 2.45~2.85 | 2.48~3.05 | 2.53~3.04 | 2.75~3.08 | 2.77~3.03 |
| Refrigerant/ Proper Input | kg | R290/0.55kg | R290/0.7kg | R290/0.9kg | R290/1.1kg | R290/1.5kg |
| Fan Motor Type | / | DC motor | DC motor | DC motor | DC motor | DC motor |
| Fan Quantity | / | 1 | 1 | 1 | 2 | 2 |
| Compressor | Brand | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY |
| Plate heat exchanger | Brand | Alfa Laval | Alfa Laval | Alfa Laval | Alfa Laval | Alfa Laval |
| Circulation Pump | Brand | Wilo | Wilo | Wilo | Wilo | Wilo |
| Max. flow temp. in heating mode | ℃ | 75 | 75 | 75 | 75 | 75 |
| Min. flow temp. in heating mode | ℃ | 20 | 20 | 20 | 20 | 20 |
| Min. flow temp. in cooling mode | ℃ | 7 | 7 | 7 | 7 | 7 |
| Circulation Pump Water lift | m | 7.5 | 7.5 | 7.5 | 12.5 | 12.5 |
| Water Pressure Drop (max) | kpa | 30 | 30 | 30 | 30 | 45 |
| Water connection | inch | G 1 | G 1 | G 1 | G 1 | G 1-1/4 |
| Operating Ambient Temp | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 |
| Noise level (indoor/outdoor) | dB(A) | 42/52 | 42/52 | 42/52 | 42/52 | 42/58 |
| Unit Dimensions (L/W/H) | mm | 1150×520×755 | 1200×550×855 | 1200×550×855 | 1250×550×1420 | 1250×550×1420 |
| Net Weight | kg | 88 | 104 | 112 | 164 | 185 |
| (1) Heating condition: water inlet/outlet temperature:30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; (2) Heating condition: water inlet/outlet temperature:40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; (3) Cooling condition: water inlet/outlet temperature:23℃/18℃, Ambient temperature: DB 35℃/WB 24℃; (4) Cooling condition: water inlet/outlet temperature:12℃/7℃, Ambient temperature: DB 35℃/WB 24℃; |
||||||
Eco-Friendly R290 Refrigerant
R290 distinctive advantages compared to other alternative refrigerants:Improve COP up to 4.8, reducing running costs; Low GWP of 3, exceptionally eco-friendly and benefit to carbon neutrality, curbing global warming; Water temperature can achieve up to 75℃ with higher energy efficiency; Legionella prevention in water temperature up to 65°C and higher; Wide working range from –25°C to +46°C
Heat Pumps Play a Significant Role in Decarbonizing Heating Industry
We provide comprehensive eco-energy solutions for your smart home and low-carbon green life.
DC Inverter Technology
Designed to withstand the extremely cold condition, Exinda heat pumps have passed the extremely cold operation test, it can stably operate at -25°C, maintain high COP and reliable stability. Different from fixed speed systems, inverters automatically ramps up and down by the variable speed compressor, which means it can adjust the output needed at the lowest energy consumption based on the ambient conditions as well as maintain temperature at the most comfortable level. Therefore, it achieves higher COP, more efficient heating/cooling & hot water even under extremely cold climate, and greatly saves energy costs, cut down electricity bills.
Low Noise Mode, Super Quiet
By Exinda upgrade technology and the unique soundproof internal structure design, the sound pressure of Storm Series Air to Water Heat Pump is kept to as low as 38dB(A) at 2.1 meter distance (Min. Flow).
Smart Control System
Users are able to remotely set water temperature and room temperature, change settings and check running status via computers (web server) or mobile phone (APP). With DTU Module and Electric Wi-Fi Control, you can pre-heat or cool a room no matter where you are. Besides, from performance monitoring to predictive logic & analytics, our Intelligent IoT System is a cost-efficient way to diagnose failing issue, automatically adjust the operation logics and directly solve the problem at the back-end, increase the security, uptime and reliability of your heat pump. APP and remote diagnostics are very crucial in Exinda system. Hence, we have an open API for connecting to Energy Management Systems and Smart Home Applications with capable and well-documented interface (e.g.RS485, Modbus).
Hybrid Heating System
With Modbus(RS485) Interface, Exinda Integrate Heat Pump can be connected to other energy source such as fuel boiler, solar PV panel， pellet boiler to achieve energy saving, based on local energy policy and user's preference. It will be greatly helpful in extremely cold area.
Weather-dependent Curve
The weather-dependent heating curve plays an important role in the significant increment of the SCOP of the unit.As the figure showing, when the house weather condition (outside temperature) is at A2, the flow temperature is at B1, and it will increase to be at B2 when the house weather condition gets cold and drops to A1.The system keeps monitoring the current ambient temperature so as to automatically immediately adjust the flow temperature in opposite direction to achieve the desired optimum comfort level. Therefore, customers can always use the most comfortable outlet water temperature under changing weather condition and different circumstance (e.g. heating demand, insulation levels, etc).In this way, the weather-dependent operation greatly reduces energy consumption.
Anti-Frozen and Intelligent Defrost Mode
With the intelligent defrost mode, Exinda heat pump can automatically detect the forming frost on the outdoor coil and initiate a defrost cycle to melt it away, maintaining the high heating efficiency of the heat pump. Preventing frost/ice from building up in the outdoor unit in cold climate conditions considerably contributes to minimizing energy consumption, avoid unnecessary wear and tear on the equipment and extend longer heating operation time.
Main Component and Dedicated Structure
Exinda Heat Pump is designed with a comprehensive and rigorous logic system, which controlled by the intelligent console software PCBA to increase the security, efficiency and reliability of the unit operation.
Installation with Hydrobox
