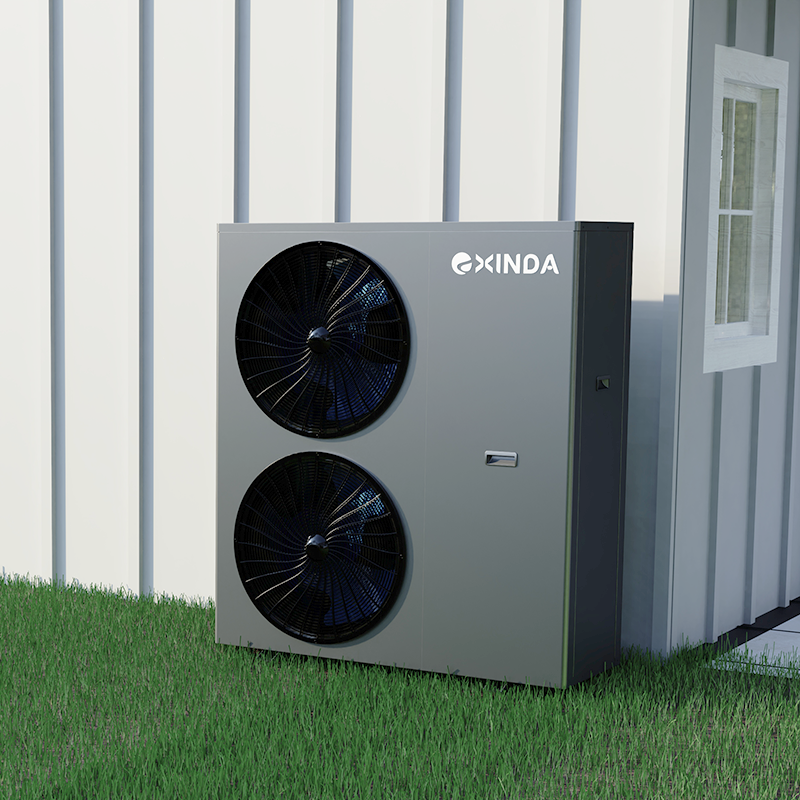

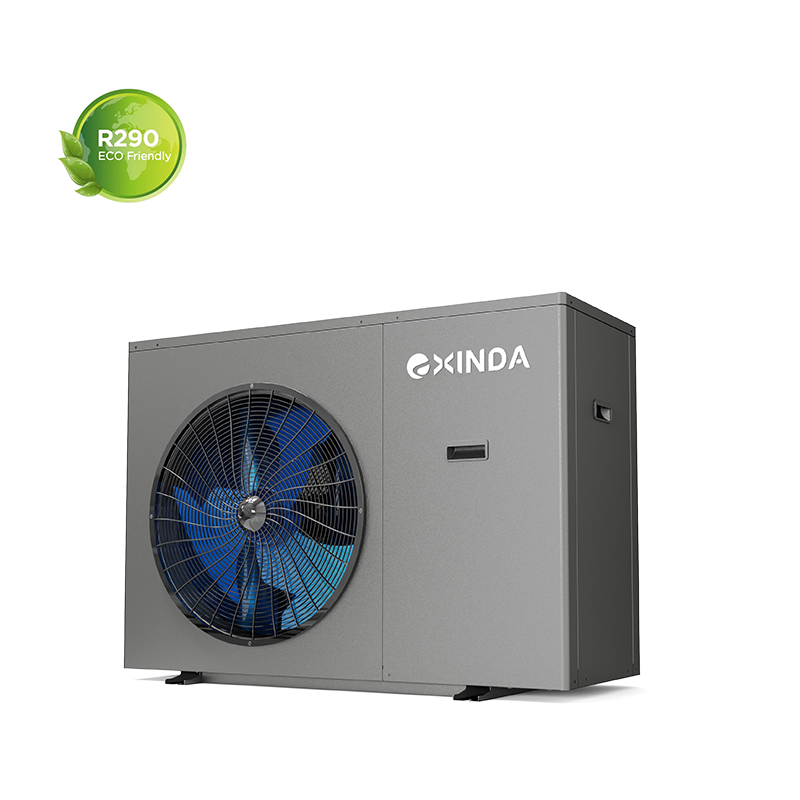

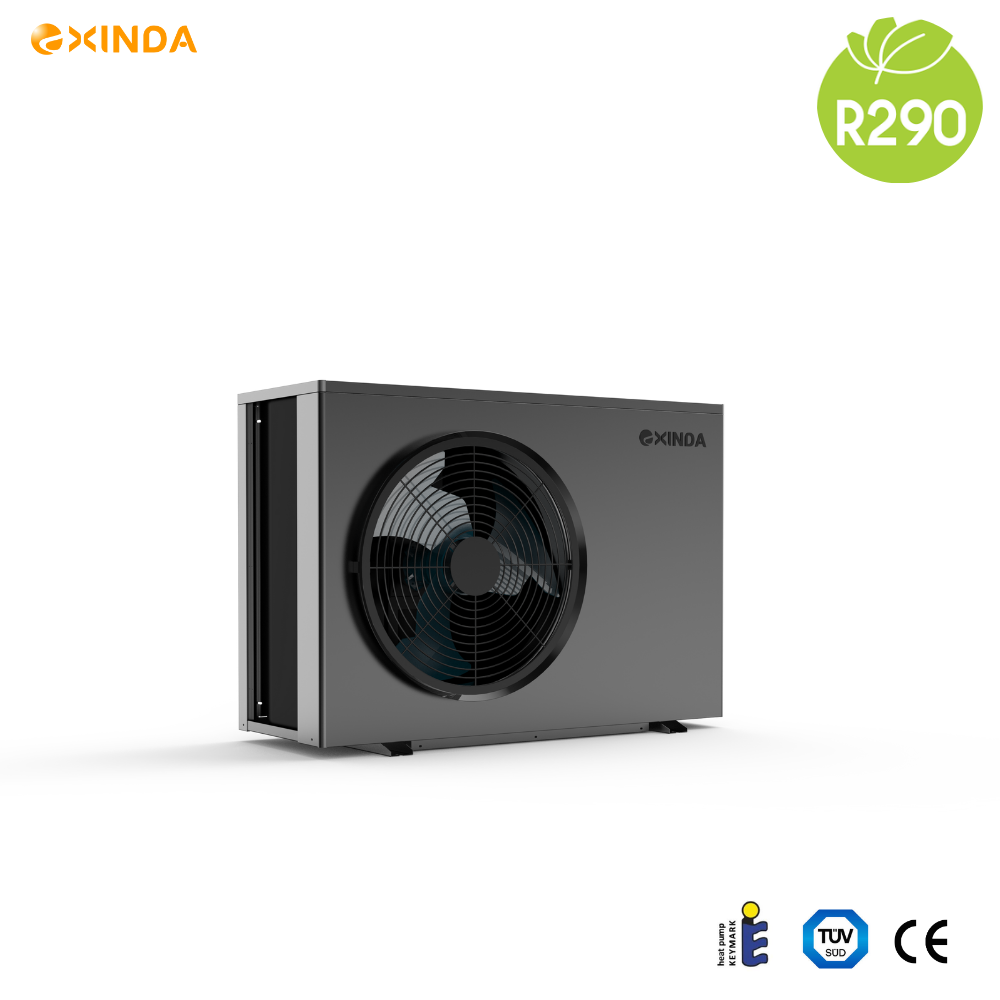

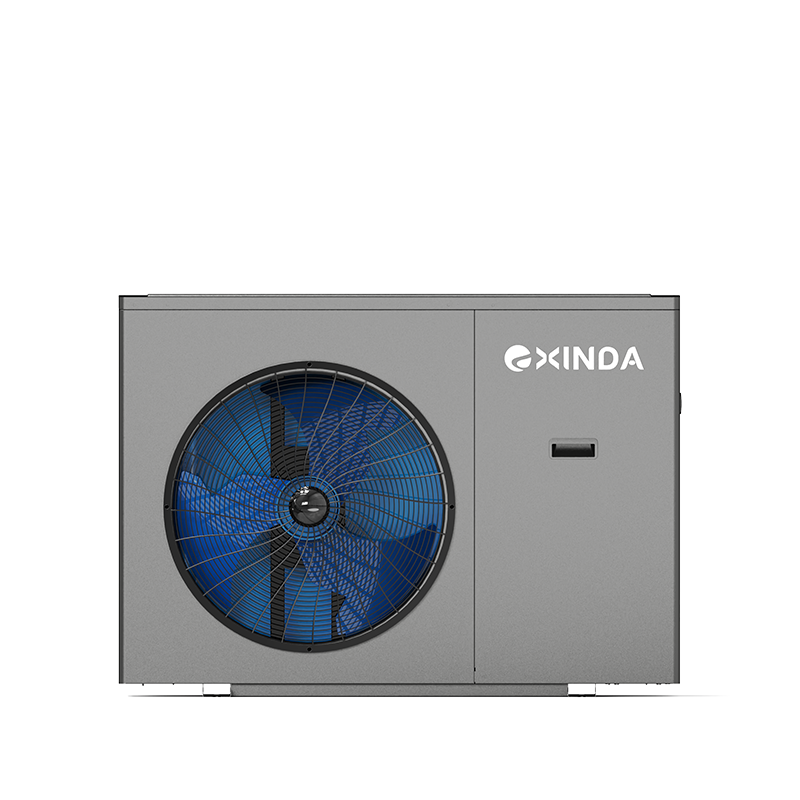

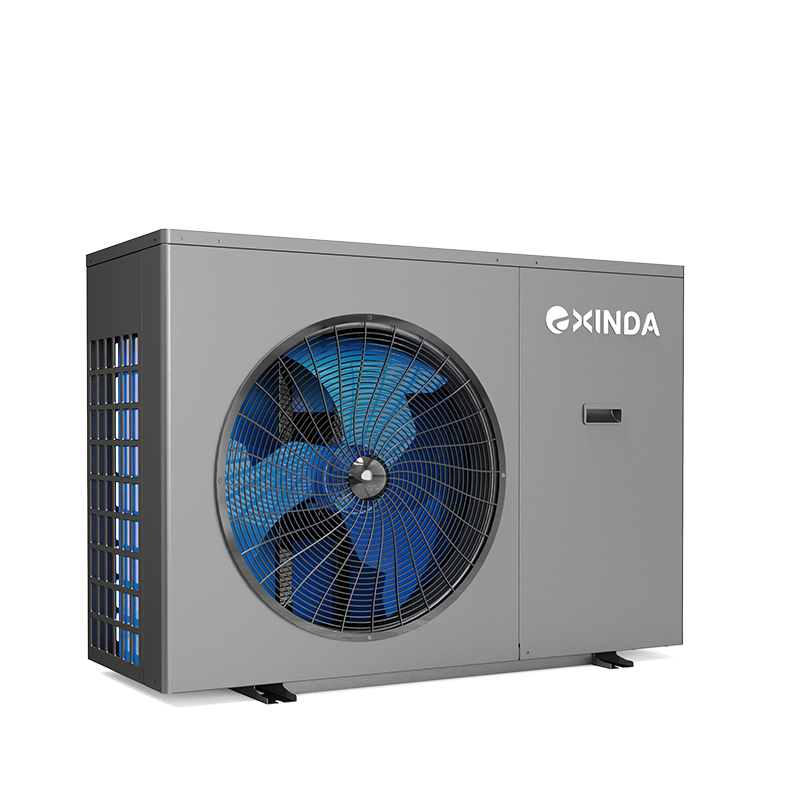

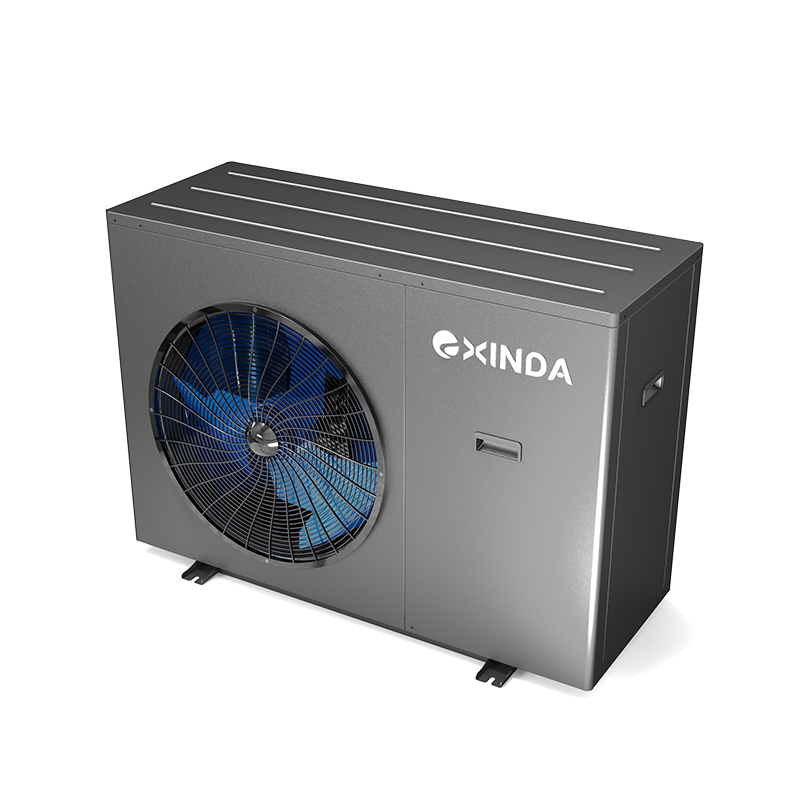

R290 Monoblock Heat Pump 6KW/9KW/12KW/15KW/20KW for heating, cooling, and domestic water


R290 Monoblock Heat Pump Customized Solution for Heating, Cooling, and Domestic Hot Water

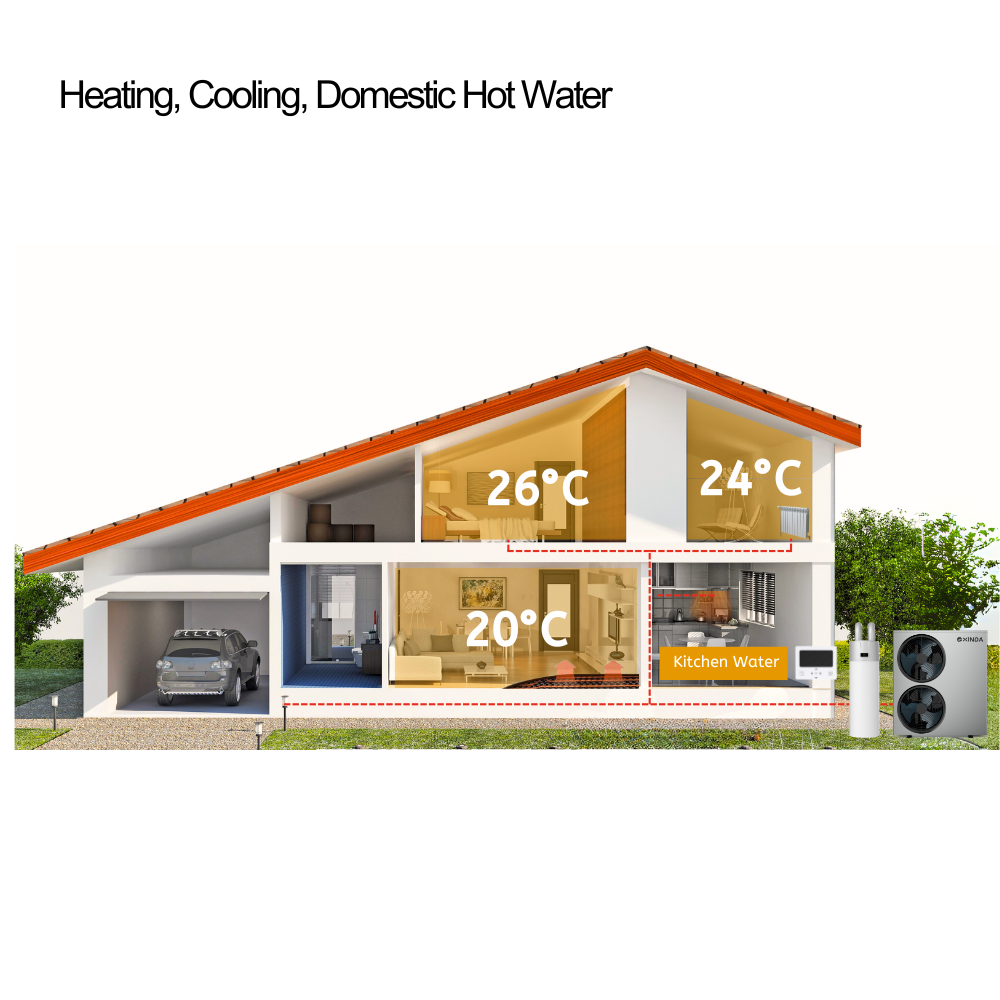

The R290 Monoblock Heat Pump is a highly efficient, multi-functional heating system designed to meet the modern demands of heating, cooling, and providing domestic hot water for both residential and commercial buildings. Available in various capacities - 6KW, 9KW, 12KW, 15KW, and 20KW, it caters to a range of building sizes. Suitable for use in countries with European installation standards, including the UK, Germany, France, Italy, and Spain, etc.

Low Noise Mode: Operates with a low noise mode, maintaining sound levels below 38dB for ultra-quiet operation, perfect for residential areas and ensuring undisturbed sleep at night.

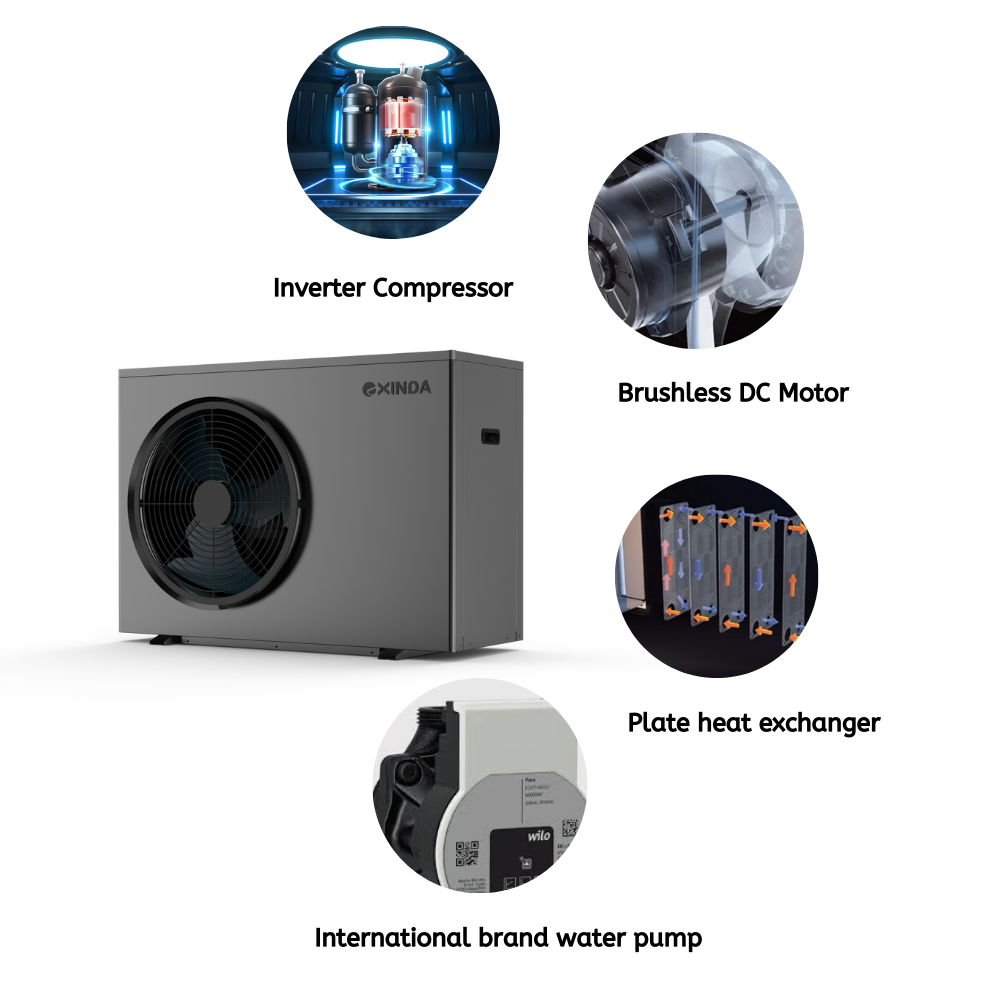

DC Inverter Technology: Utilizes advanced DC Inverter Technology to enhance efficiency, leading to lower electricity costs for users.

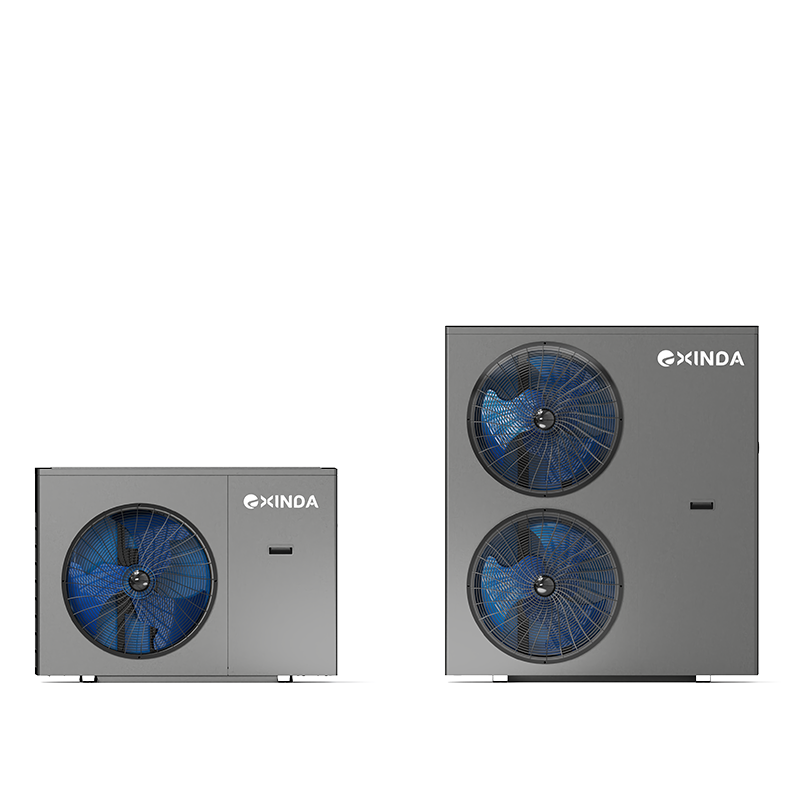

Multiple Power Options: Available in 6KW, 9KW, 12KW, 15KW, and 20KW, catering to different residential and commercial spaces.

Customised Design: Offers not only tailored design options, such as logo, exterior, and water pump customization, but also comprehensive technical support to meet diverse client needs effectively.

Certification: CE, KeymarkERP, MCS, UL AHRI 550/590 Certification



Details

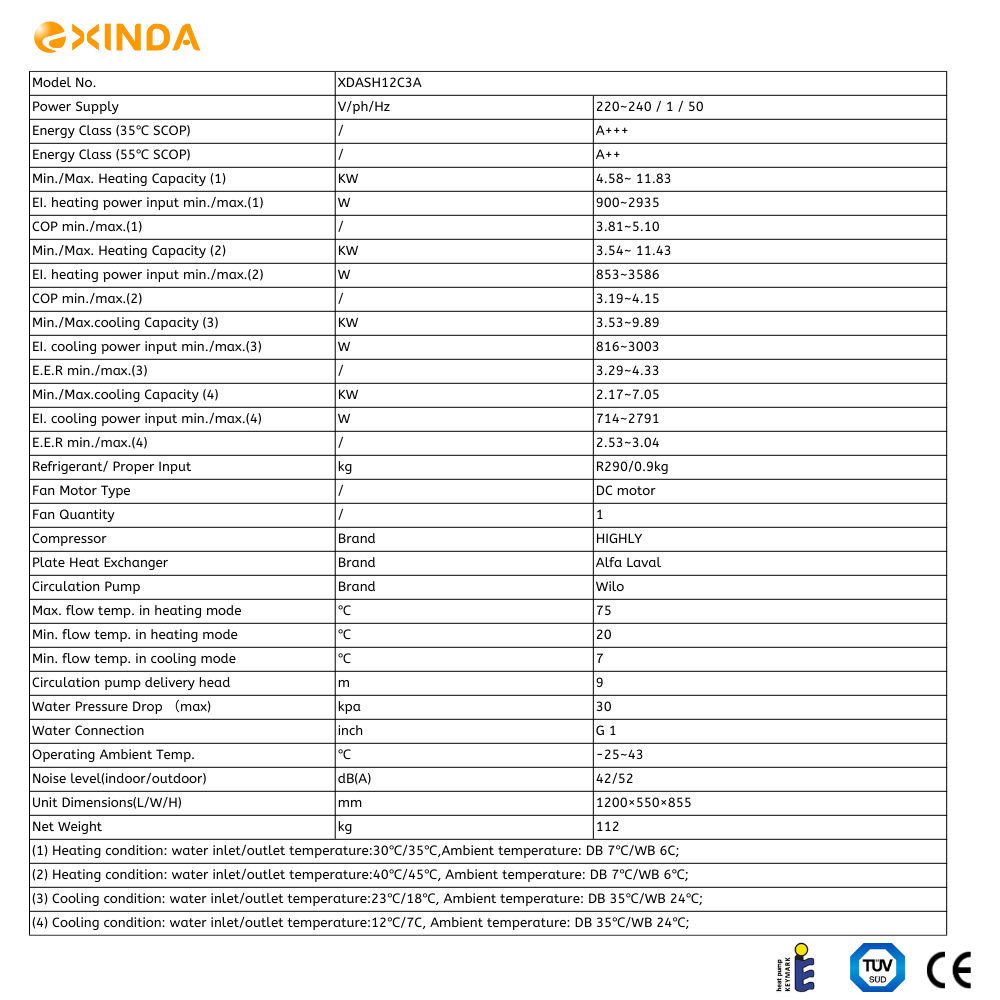

R290 Inverter Air To Water Heat Pump Parameters



Model No. XDASH06C3A XDASH09C3A XDASH12C3A XDASH15D3A XDASH20D3A
Power Supply V/ph/Hz 220~240 / 1 / 50 220~240 / 1 / 50 220~240 / 1 / 50 380~415 / 3 / 50 380~415 / 3 / 50

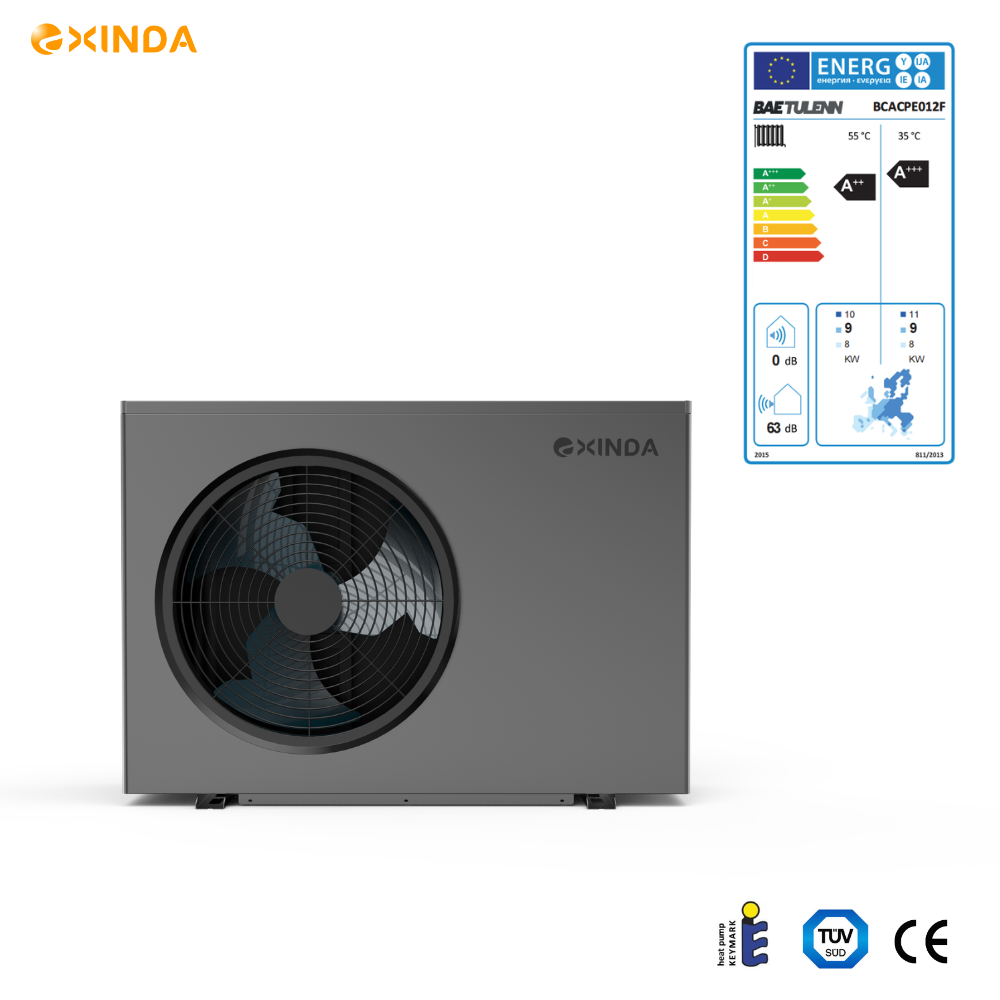

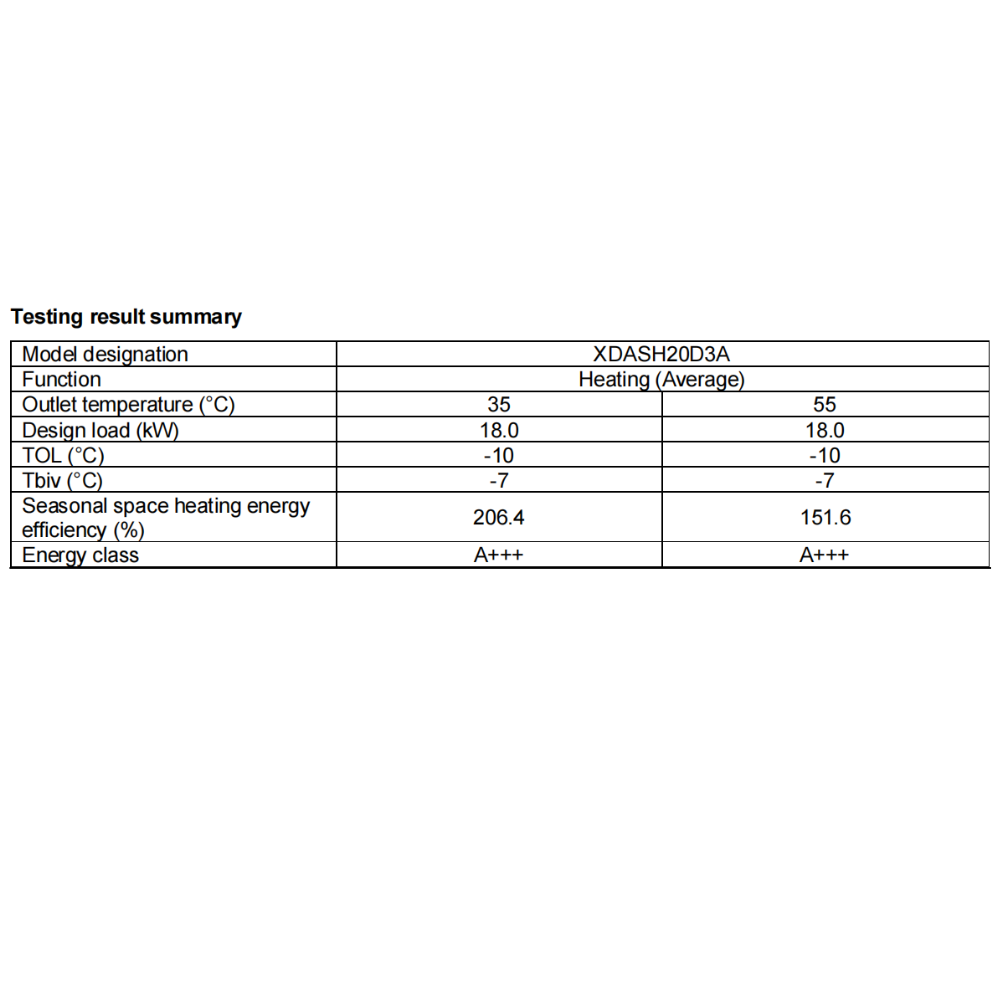

Energy Class (35°C SCOP) / A+++ A+++ A+++ A+++ A+++
Energy Class (55°C SCOP) / A++ A++ A++ A++ A+++

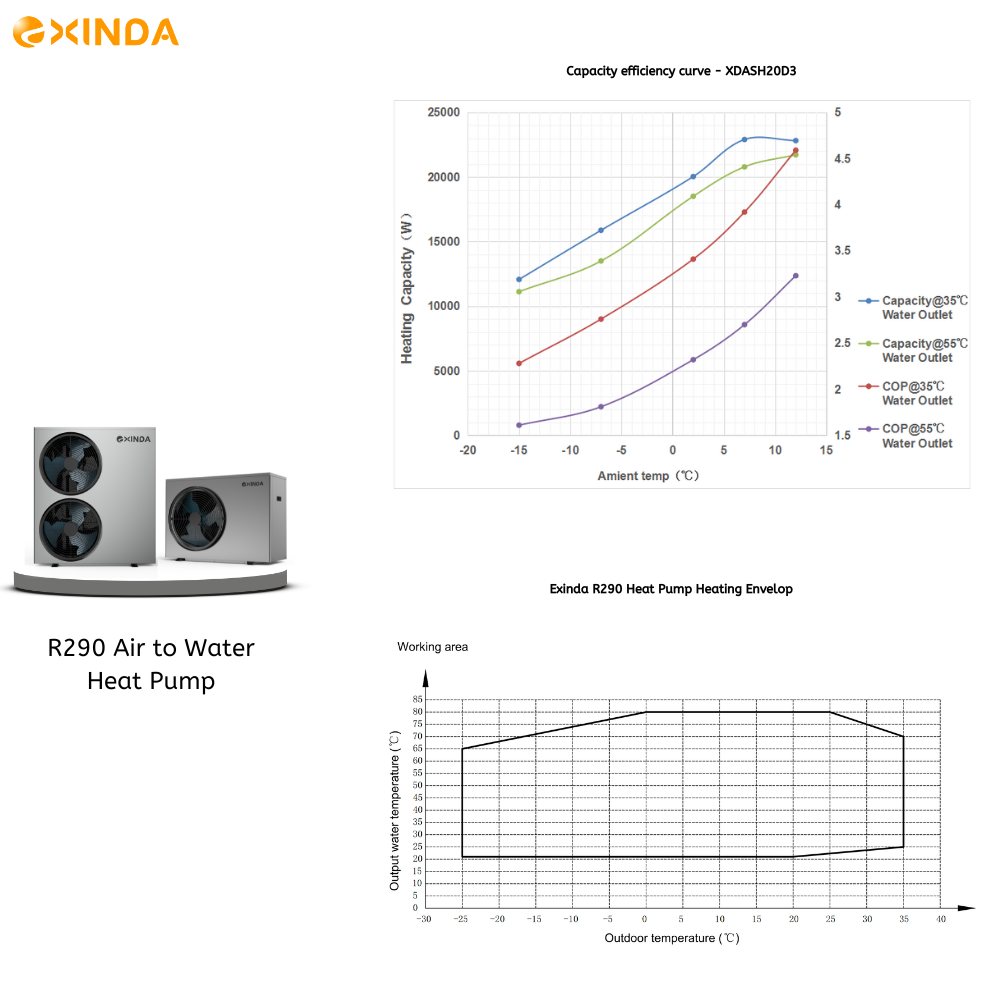

Min./Max. Heating Capacity (1) KW 2.07~6.82 2.99~8.86 4.58~11.83 5.64~15.72 7.81~22.32
EI. heating power input min./max.(1) W 476~1572 582~2374 900~2935 1121~4041 1603~5818
COP min./max.(1) / 3.90~5.14 3.73~5.13 3.81~5.10 3.87~5.10 3.84~5.12
Min./Max. Heating Capacity (2) KW 1.95~5.91 2.73~8.58 3.54~11.43 5.06~15.22 7.60~20.84
EI. heating power input min./max.(2) W 459~1830 656~2751 853~3586 1191~4812 1833~6584
COP min./max.(2) / 3.23~4.25 3.12~4.16 3.19~4.15 3.16~4.20 3.17~4.14
Min./Max.cooling Capacity (3) KW 1.73~5.47 2.92~7.44 3.53~9.89 6.81~12.20 9.39~16.72
EI. cooling power input min./max.(3) W 529~1252 676~2304 816~3003 1551~3741 2139~5159
E.E.R min./max.(3) / 3.27~4.37 3.23~4.32 3.29~4.33 3.26~4.39 3.24~4.39
Min./Max.cooling Capacity (4) KW 0.85~4.71 1.86~5.30 2.17~7.05 4.81~9.87 6.52~13.71
EI. cooling power input min./max.(4) W 347~1615 610~2141 714~2791 1558~3584 2149~4943
E.E.R min./max.(4) / 2.45~2.85 2.48~3.05 2.53~3.04 2.75~3.08 2.77~3.03
Refrigerant/ Proper Input kg R290/0.55kg R290/0.7kg R290/0.9kg R290/1.1kg R290/1.5kg
Fan Motor Type / DC motor DC motor DC motor DC motor DC motor
Fan Quantity / 1 1 1 2 2

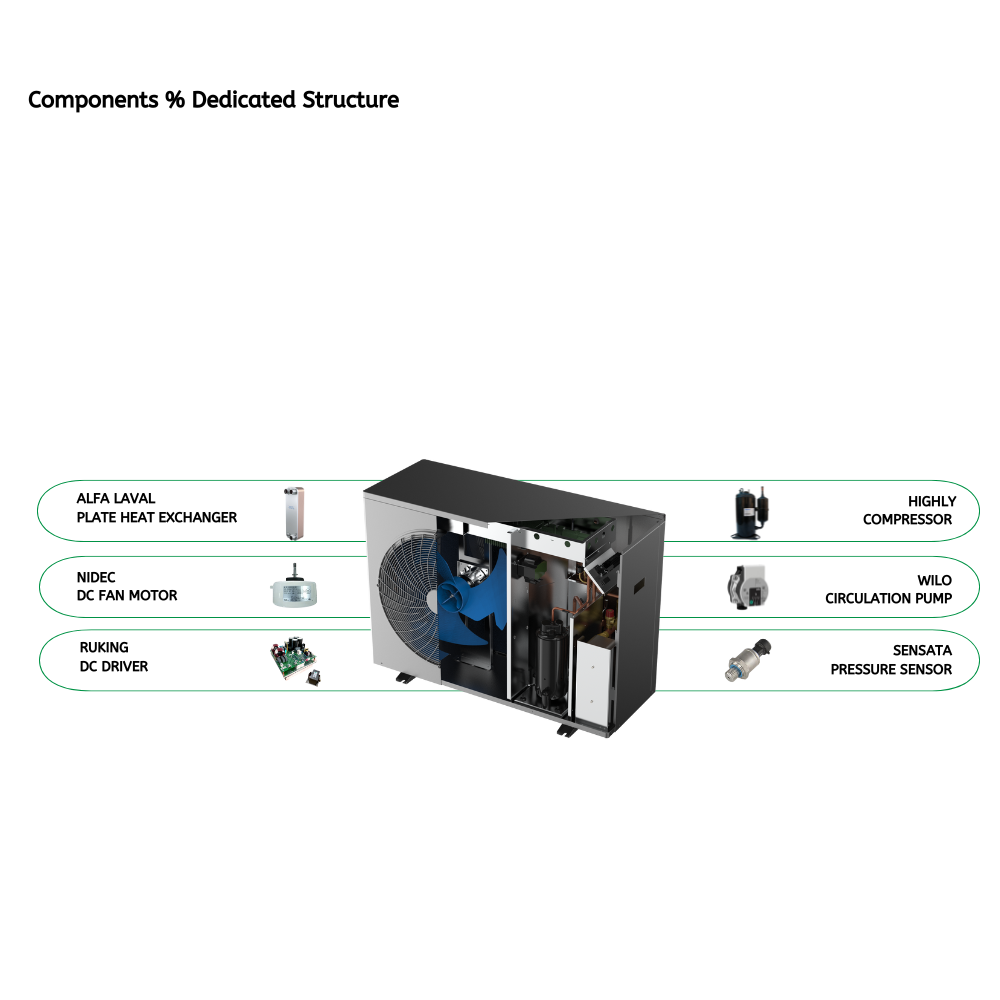

Compressor Brand HIGHLY HIGHLY HIGHLY HIGHLY HIGHLY
Plate heat exchanger Brand Alfa Laval Alfa Laval Alfa Laval Alfa Laval Alfa Laval
Circulation Pump Brand Wilo Wilo Wilo Wilo Wilo
Max. flow temp. in heating mode 75 75 75 75 75
Min. flow temp. in heating mode 20 20 20 20 20
Min. flow temp. in cooling mode 7 7 7 7 7
Circulation Pump Water lift m 7.5 7.5 7.5 12.5 12.5
Water Pressure Drop (max) kpa 30 30 30 30 45
Water connection inch G 1 G 1 G 1 G 1 G 1-1/4
Operating Ambient Temp -25~43 -25~43 -25~43 -25~43 -25~43
Noise level (indoor/outdoor) dB(A) 42/52 42/52 42/52 42/52 42/58
Unit Dimensions (L/W/H) mm 1150×520×755 1200×550×855 1200×550×855 1250×550×1420 1250×550×1420
Net Weight kg 88 104 112 164 185
(1) Heating condition: water inlet/outlet temperature:30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
(2) Heating condition: water inlet/outlet temperature:40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
(3) Cooling condition: water inlet/outlet temperature:23℃/18℃, Ambient temperature: DB 35℃/WB 24℃;
(4) Cooling condition: water inlet/outlet temperature:12℃/7℃, Ambient temperature: DB 35℃/WB 24℃;
