EXINDA 0.5HP Ice Bath Chiller for Cold Plunge
MID-SIZE COLD PLUNGE COOLING · CIRCULATION · WATER TREATMENT
EXINDA 0.5HP Ice Bath Chiller is a cool-only system integrating water cooling, circulation and filtration for medium-size cold plunge installations.
Choose the version for your market
- North America: FBMDHC22B1V3U7U · 110–120 V / 60 Hz
- Europe: FBMDHC22B1V3U7 · 220–240 V / 50 Hz
0.5HP Ice Bath Chiller Specifications
Cool-only cold plunge chiller available in North American and European electrical configurations.
| Specification | North America | Europe |
|---|---|---|
| Model | FBMDHC22B1V3U7U | FBMDHC22B1V3U7 |
| Cooling capacity | 5,868 Btu/h | 1,840 W |
| Power supply | 110–120 V / 1 Ph / 60 Hz | 220–240 V / 1 Ph / 50 Hz |
| Rated input power | 780 W | 870 W |
| EER | 2.1 | 2.1 |
| Water temperature range | 37.4–90°F | 3–32°C |
| Ambient operating range | 35.6–109.4°F | 2–43°C |

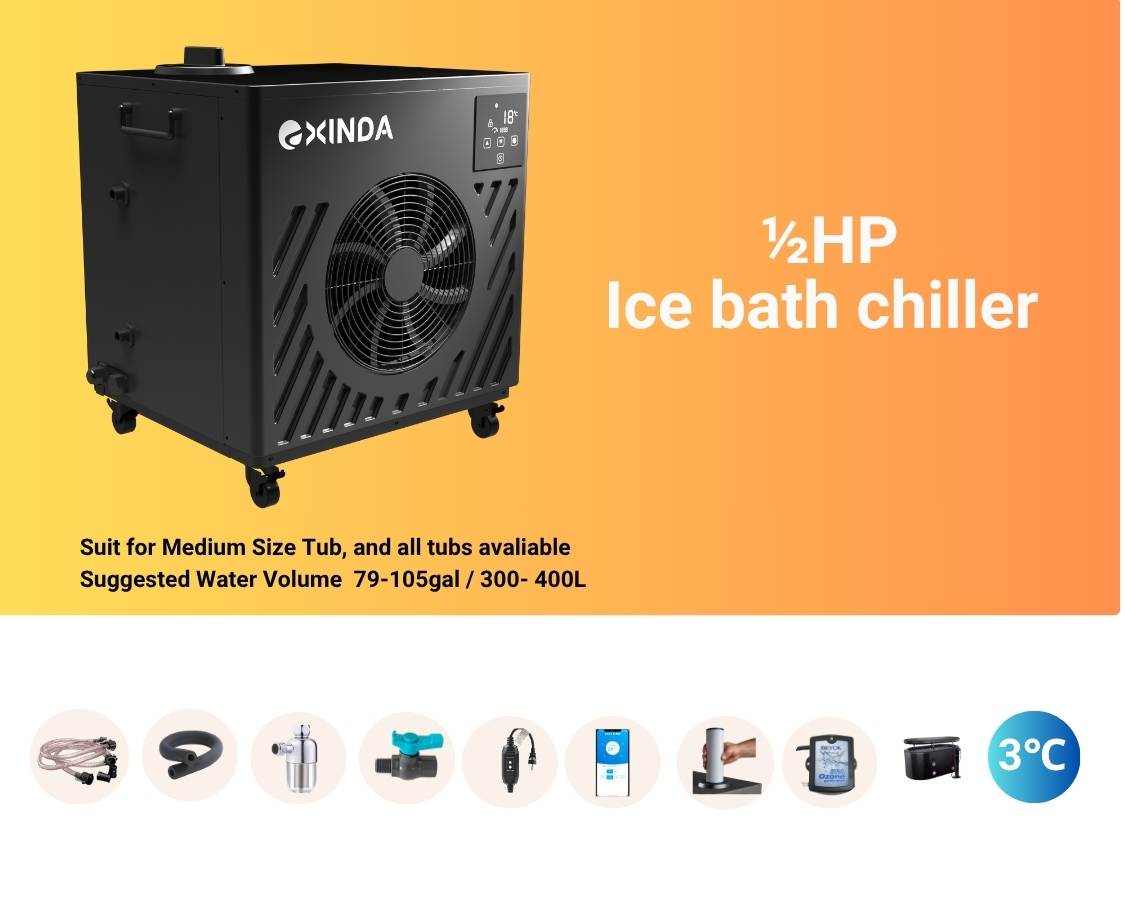

| Suggested water volume | 79–105 gal | 300–400 L |
| Water flow | 4.2 GPM | 16 L/min |
| Refrigerant | R32 / 13.4 oz | R32 / 0.28 kg |
| Water connections | 1/2 in. thread | 1/2 in. thread |
| Sound pressure | 49 dB(A) @ 1 m | 49 dB(A) @ 1 m |
| Net dimensions | 19 × 17.2 × 20.8 in. | 493 × 437 × 530 mm |
| Net weight | 73 lb | 33 kg |
| Maximum circuit breaker | 12 A | 10 A |
Cooling Performance & Selection
North America reference
Approximately 16 hours based on 105 gal of water and a 59°F temperature reduction.
Europe reference
Approximately 16 hours based on 400 L of water and a 15°C temperature reduction.
Selection note: Actual cooling time depends on water volume, starting and target temperatures, ambient conditions, tub insulation, cover use, plumbing configuration and surrounding heat gain.
Cooling, Circulation and Water Treatment in One Unit
Cool Only
Designed for cold-plunge water cooling with published minimums of 37.4°F for North America and 3°C for Europe.
Built-In Circulation Pump
Integrated water circulation simplifies system setup. The pump is not self-priming.

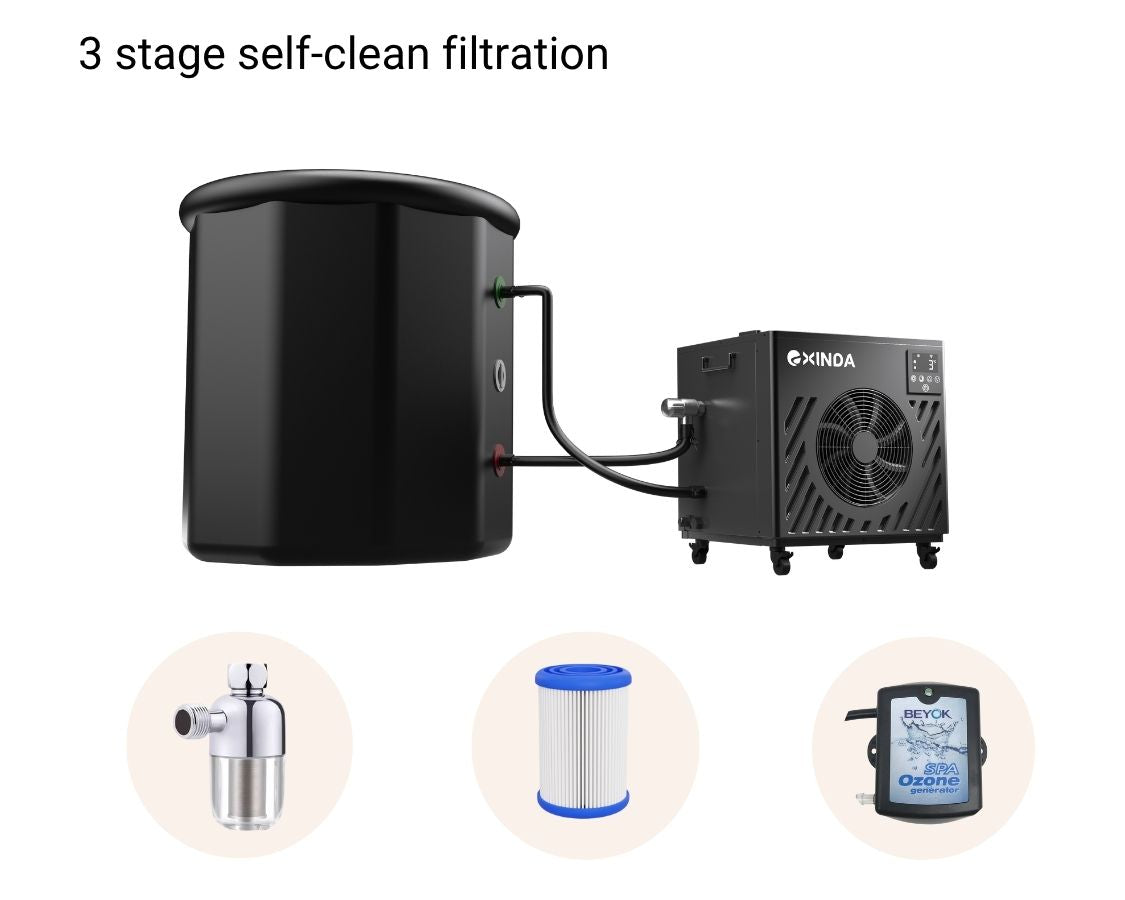

Three-Stage Water Treatment
Ozone generator, 20 μm micro filter and washable filter are listed in the current submittals.
Wi-Fi / App Control
Wi-Fi is listed for North America; the EU submittal specifies iOS & Android app availability.
Correct Installation for Reliable Water Circulation
- Position below the water line. Gravity helps feed water into the pump.

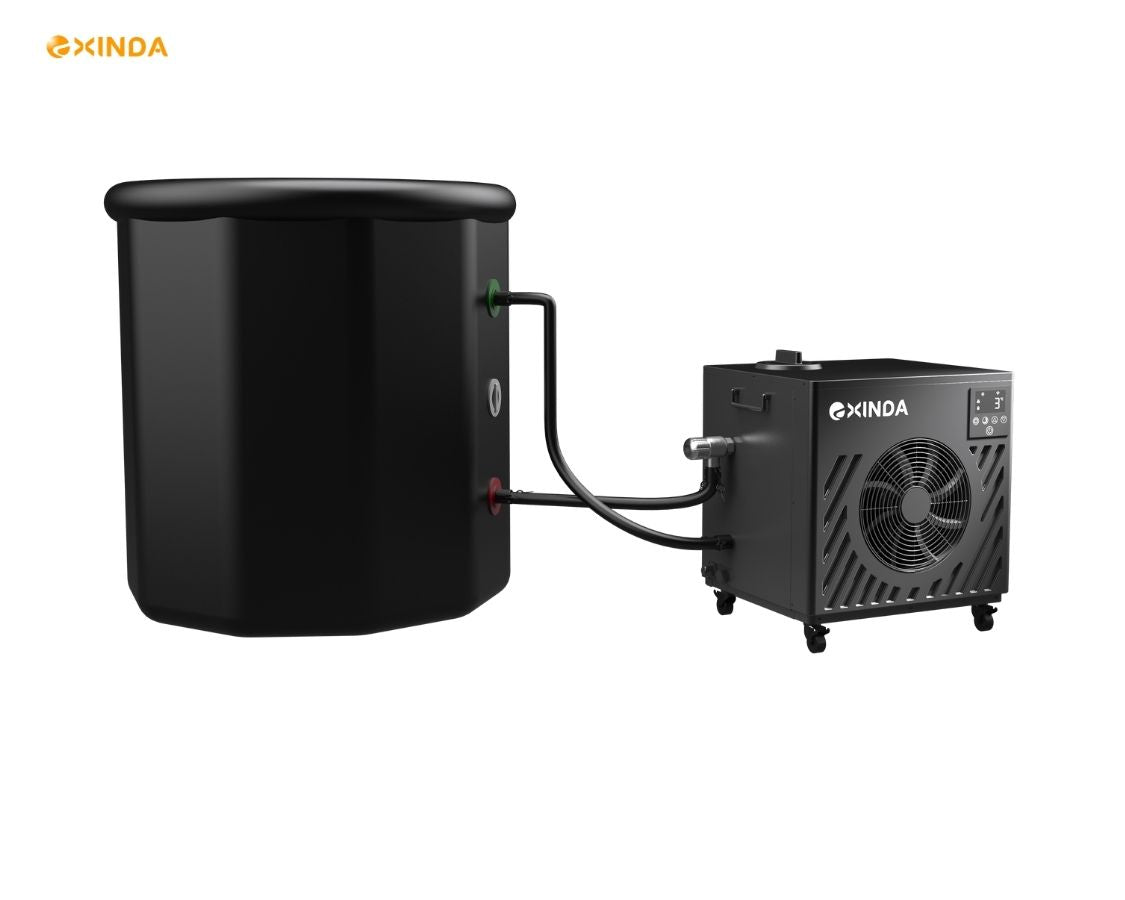

- Connect correctly. Chiller outlet → tub inlet; tub outlet → chiller inlet.

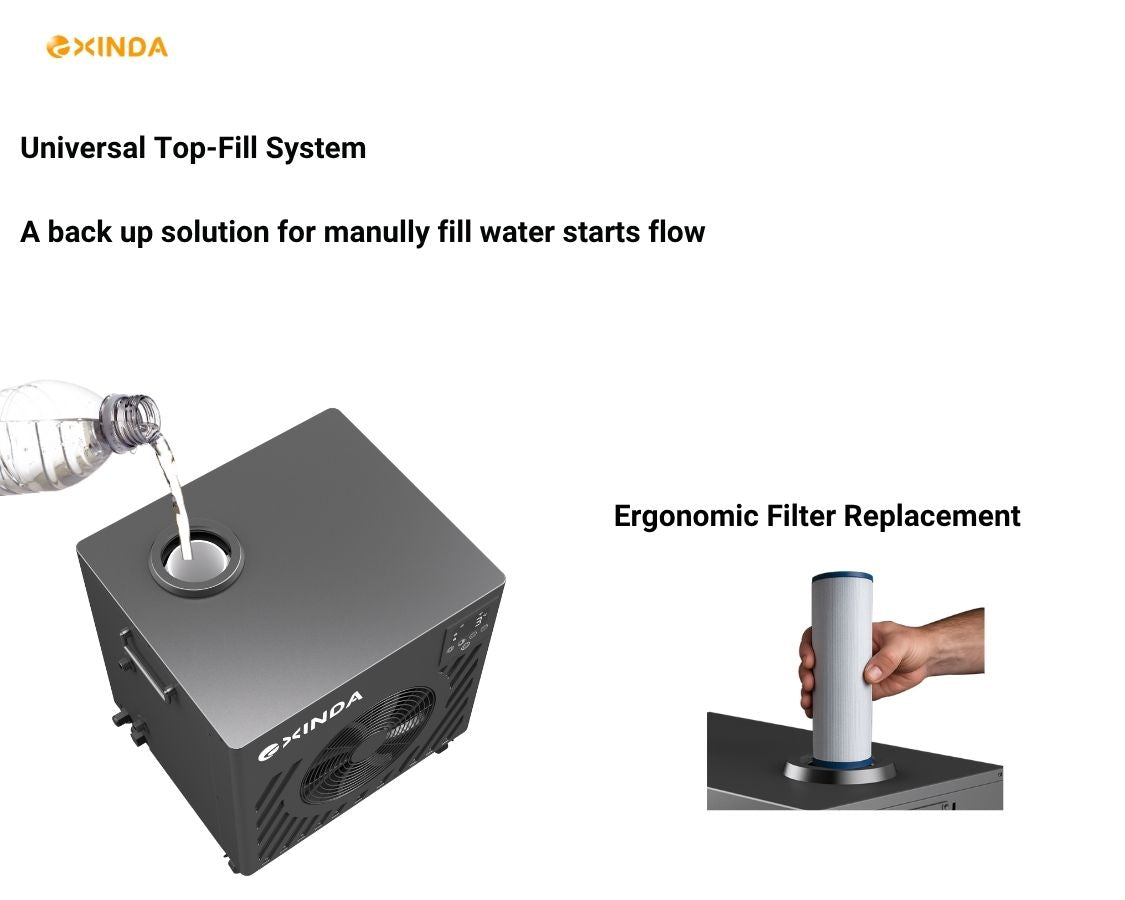

- Prime before startup. Manually fill the water / filtration circuit before powering on.
- Remove trapped air. Keep the inlet hose submerged and free of air gaps or kinks; repeat filling until flow is steady.
Important: The built-in circulation pump is not self-priming.
What's Included
1 pc
2 pcs
4 pcs
1 pc
1 pc
2 pcs
Safety & Regional Configuration
North America
The current submittal lists built-in GFCI protection and IPX4 water resistance.
Europe
The current submittal shows CE, built-in RCD protection and IPX4 water resistance.
Confirm applicable certification documentation for the exact model and destination market before specification.
0.5HP Ice Bath Chiller Technical Documents
North America — FBMDHC22B1V3U7U
Request the current US model-specific submittal.
Europe — FBMDHC22B1V3U7
Request the current EU model-specific submittal.
0.5HP Ice Bath Chiller Questions & Answers
How cold can the 0.5HP chiller get?
The current North American submittal lists 37.4–90°F; the European version lists 3–32°C.
What tub size is suitable?
The published suggested water volume is 79–105 gal for North America and 300–400 L for Europe.
Is this model cooling only?
Yes. Both current submittals identify the 0.5HP model as cool only.
Does it include filtration and ozone?
Yes. The current submittals list ozone generation, a 20 μm micro filter and a washable filter.
Does the pump need priming?
Yes. The built-in circulation pump is not self-priming and the water circuit must be primed before startup.
0.5HP Ice Bath Chiller
Request Selection Support
Send us your country, tub volume, starting water temperature, target temperature, ambient conditions and expected quantity. EXINDA can help confirm the correct configuration.
