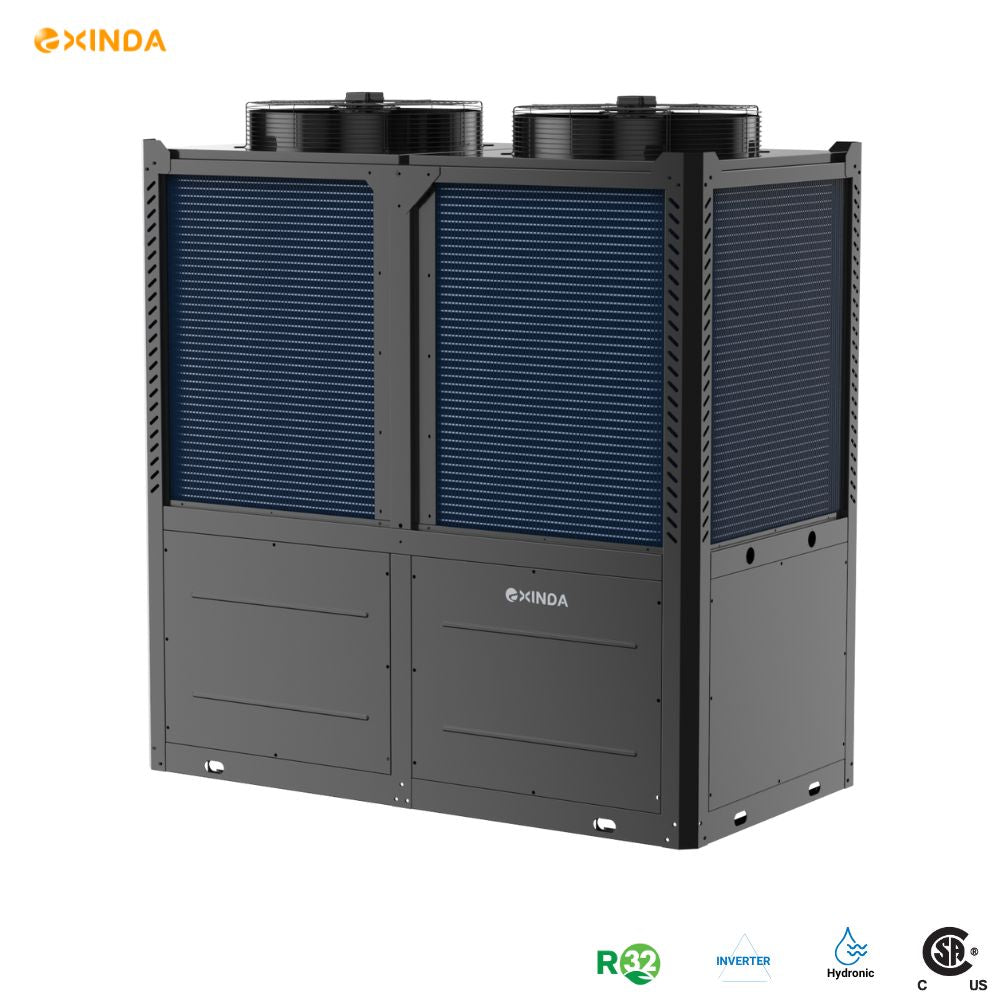

EXINDA 24 Ton 480V/ 575V Inverter Commercial Heat Pump Chiller
The Exinda commercial 24Ton air-to-water heat pump is a high-efficiency inverter-driven system engineered to deliver reliable heating (hot water), cooling (cool water), and domestic hot water in cold climates down to –13°F (–25°C). Designed specifically for North American commercial projects, it supports 575V / 3-phase / 60Hz power input — ideal for Canadian and industrial-grade installations.
At the core is a twin-scroll EVI inverter compressor optimized for energy efficiency and low-noise operation. It adapts to variable loads, minimizing energy use while maintaining thermal comfort. The system utilizes eco-friendly R32 refrigerant (GWP 675) and features smart anti-freeze protection, intelligent demand-based defrost, and a scalable cascade design that supports up to 8 units max up to 192 tons for larger installations or redundancy. Allows Flexibilty by combining multiple units to various applications... like Restaurants, Hotels, Multi-family buildings, Laundry facilities, Healthcare facilities, Schools,Sports arenas, Gyms .....
- Heating/Cooling in One System
- Stable Performance to –13°F (–25°C)
- Cool water temperature down to 44.6°F
- Hot water temperature up to 140°F
- R32 Refrigerant – Low GWP, high efficiency
- UL-60335-2-40 & AHRI 550/590 Certified
- Smart Defrost + Freeze Protection
- Low Operating Noise: 62–69 dB(A)
- COP up to 4.77 / EER 2.84
- Heating/Cooling in One System
- Stable Performance to –13°F (–25°C)
- Cool water temperature down to 44.6°F
- Hot water temperature up to 140°F
- R32 Refrigerant – Low GWP, high efficiency
- UL-60335-2-40 & AHRI 550/590 Certified
- Smart Defrost + Freeze Protection
- Low Operating Noise: 62–69 dB(A)
- COP up to 4.77 / EER 2.84
480V/ 575V Air Cool Heat Pump Chiller
EXINDA Commercial Heat Pump Chiller (24 Ton) – Engineered for North America’s commercial buildings. EXINDA’s air-to-water heat pump chiller cascade 8 unit max delivers up to 192 tons of cooling/heating capacity in a modular, scalable format. Designed for 480V (US) and 575V (Canada) electrical systems, it seamlessly integrates into facilities across North America, offering project engineers and HVAC consultants a energy efficiency solution that meets local power standards and safety codes.
North American Compatibility & Certifications: Each EXINDA module is built to comply with strict U.S. and Canadian requirements. The system is AHRI performance-certified for verified efficiency and capacity, and UL/CSA approved for safety, instilling confidence in specifiers and facility managers. The 480V/575V compatibility means no step-down transformers – a cost and hassle saver for commercial deployments. Robust construction and thorough testing ensure reliable operation in diverse regional climates and building types.

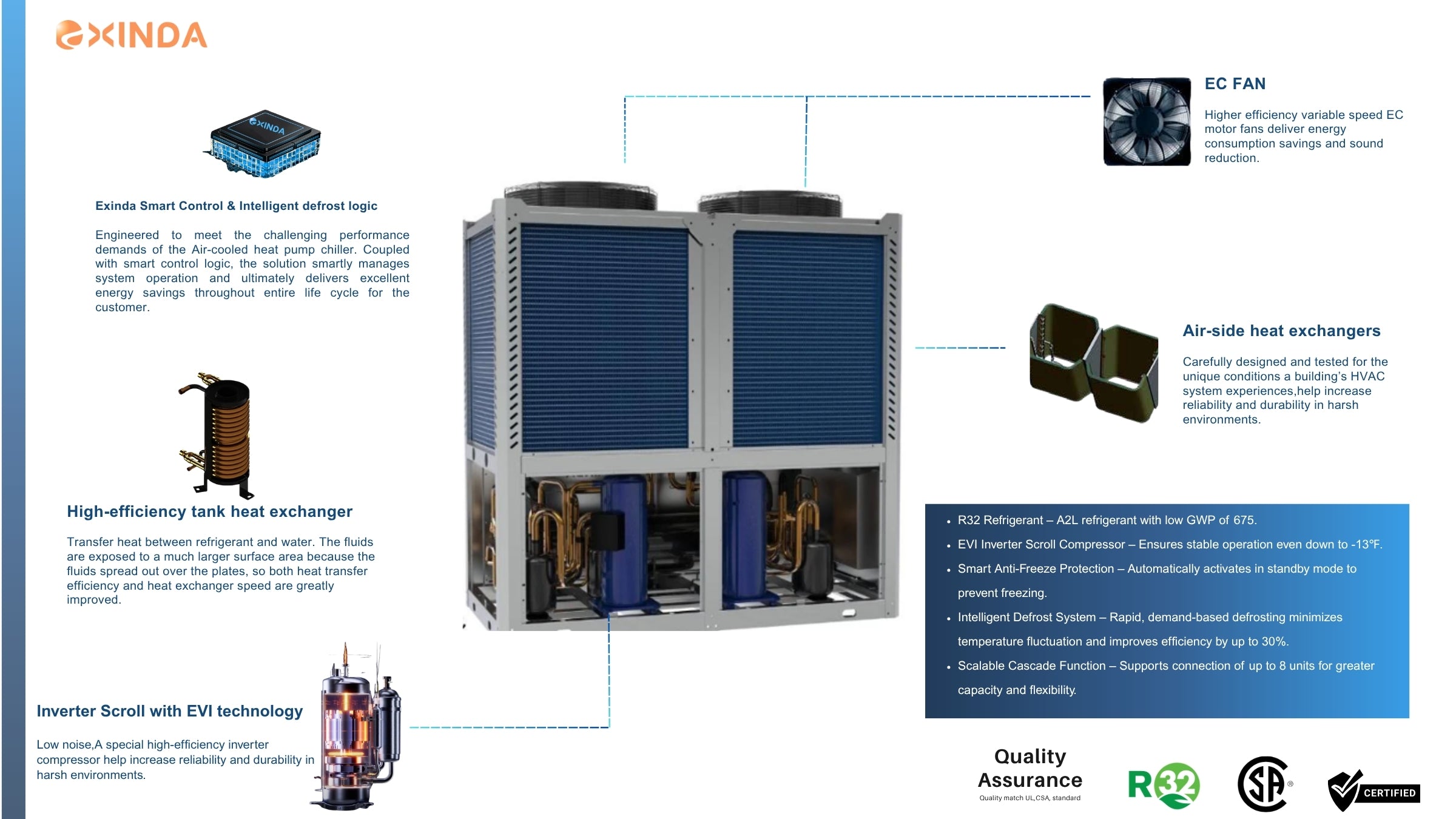

High-Capacity Modular Design & Inverter Technology: EXINDA’s chiller adopts a modular design that allows multiple 24-ton units to combine for up to 192 tons total capacity. This provides not only scale but also redundancy – if one module is down for maintenance, others continue to run, keeping your facility online. High-efficiency inverter scroll compressors dynamically adjust output to match load, delivering excellent part-load efficiency and quieter operation. This results in lower energy usage and a balanced capacity control, which is ideal for varying building demands. The use of low-GWP R32 refrigerant further enhances sustainability by significantly cutting greenhouse gas impact compared to older refrigerants.
Cold-Climate Performance with Low-GWP Refrigerant: Engineered for extreme cold, the EXINDA heat pump chiller continues to provide reliable heating even at –25°C ambient. Each unit undergoes extensive cold weather testing to ensure dependable start-up and performance in freezing conditions – perfect for northern U.S. and Canadian winters. Despite the harsh climate capability, the chiller maintains quiet operation, thanks to acoustic damping and the smooth modulation of its inverter-driven components. Facility managers will appreciate the low noise levels in sound-sensitive environments. And with R32 refrigerant (a future-proof, environmentally friendly choice), EXINDA supports organizations’ carbon reduction goals while delivering top-tier HVAC performance.
Recommendations
Partner with EXINDA
EXINDA is a trusted manufacturer of high-performance commercial heat pump chillers, built to the high industry standards as global brands. Our systems are UL, AHRI, and CSA certified, designed for year-round efficiency — even in cold climates down to –25°C.
We’re proud to work with experienced HVAC distributors and wholesalers who value quality, service, and long-term collaboration.
Contact Exinda
- Product training and technical support
- After-Sales Service
- Book a Factory Tour
