In recent years, the HVAC industry has started to see a shift toward integrated system design. More engineers, developers, and building owners are searching for “All-in-One HVAC” or “AIO HVAC” systems that can provide heating, cooling, and ventilation in one solution. But what exactly is an All-in-One HVAC system, and why is it becoming more popular?
The Traditional HVAC System Problem
In many multifamily and commercial buildings, HVAC systems are still designed using multiple separate components, such as:
Boilers for heating
Chillers for cooling
Cooling towers
Energy Recovery Ventilators (ERV)
Pumps and hydronic distribution systems
Domestic hot water systems
Separate control systems
While this approach works, it creates several challenges:
Large mechanical room space required
High installation cost
Complex piping and wiring
Multiple contractors and system coordination
Long installation time
Difficult maintenance and service
Higher total project cost
Because of these challenges, the market is moving toward more integrated HVAC solutions.
What Is an All-in-One HVAC System?
An All-in-One HVAC system (AIO) is a system that integrates multiple HVAC functions into one centralized system. Typically, an AIO HVAC system includes:
Space heating
Space cooling
Fresh air ventilation
Heat recovery
Smart controls
Optional domestic hot water
Instead of installing a boiler, chiller, and ERV separately, an All-in-One HVAC system combines these functions into one engineered system.
This type of system is especially suitable for:
Multifamily buildings
Condominiums
Hotels
Student housing
Senior living facilities
Offices
Schools
Mixed-use developments
Why the Market Is Moving Toward All-in-One HVAC Systems
There are several reasons why developers and engineers are increasingly interested in All-in-One HVAC systems:
1. Reduced Mechanical Room Space
Combining multiple systems into one reduces the space required for mechanical equipment.
2. Lower Installation Cost
With fewer systems to install, projects can reduce:
Piping work
Electrical work
Controls integration
Labor time
3. Simplified System Design
Engineers and mechanical consultants can design one integrated system instead of coordinating multiple separate systems.
4. Energy Efficiency
Modern All-in-One HVAC systems use heat pump technology and heat recovery ventilation to improve overall system efficiency.
5. Easier Maintenance
Building owners and facility managers only need to maintain one main system instead of multiple separate systems.
Centralized vs. Packaged All-in-One Systems
There are generally two types of All-in-One HVAC systems in the market:
1. Packaged / Terminal All-in-One Units
Installed in each room or apartment
Common in hotels and small apartments
Examples include packaged terminal heat pump systems
2. Centralized All-in-One Systems
Installed in a mechanical room or on the roof
Provide heating, cooling, and ventilation to the entire building without outdoor condensing unit
Typically use hydronic distribution (water loop)
More suitable for mid-rise and high-rise buildings
For larger buildings, centralized All-in-One systems are often more efficient and easier to manage.
Exinda HPERV – A Package All-in-One HVAC Solution

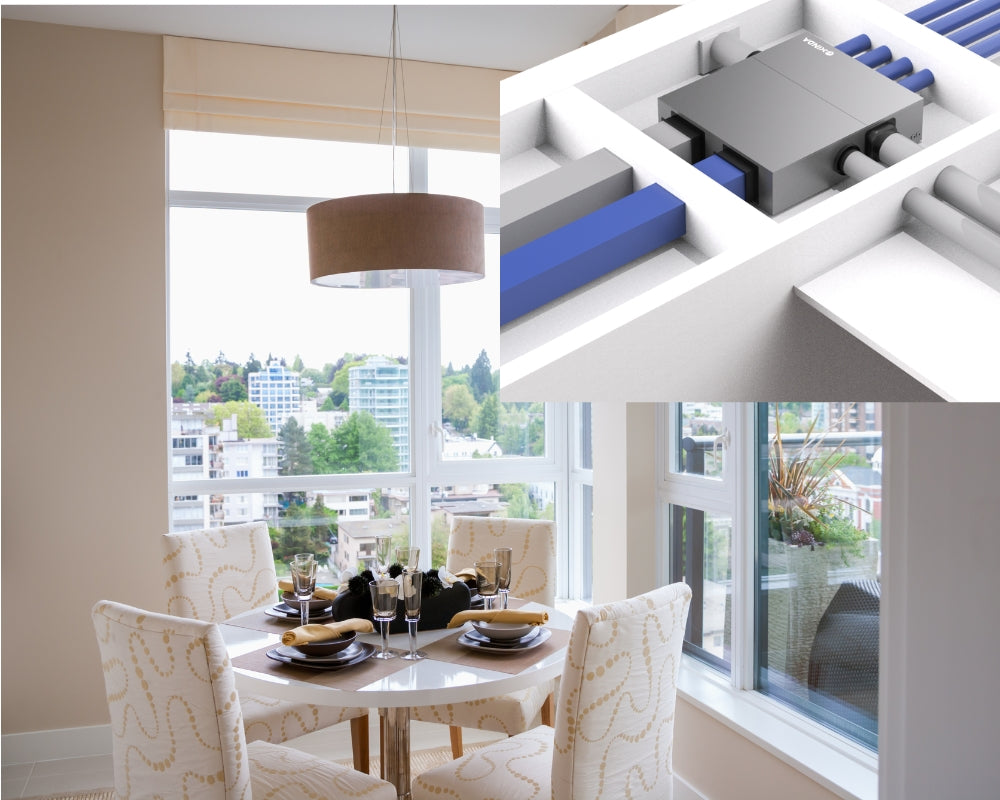

The Exinda HPERV (Heat Pump Energy Recovery Ventilator)Integrated ceiling-ducted heat pump with energy recovery ventilation providing heating, cooling, and fresh air in a single indoor unit. Designed for high-static residential duct systems and high-rise applications.
High External Static Pressure (ESP) Capability: The EXINDA HPERV system is designed with higher available external static pressure to accommodate typical multi-branch residential duct installations and support longer duct runs while maintaining stable airflow performance.
No Outdoor Unit Required. All heating, cooling, and ventilation functions are integrated into a single indoor unit without the need for outdoor condensers.
Minimal Exterior Penetrations: only two small exterior openings are required for outdoor air intake and exhaust, well suited for window wall and high-rise residential buildings.
Integrated HVAC Solution: Provides heating, cooling, and energy recovery ventilation in one integrated system.
Designed for High-Rise Applications: High available static pressure allows the system to serve multiple rooms and longer duct runs, making it suitable for modern apartments and high-rise residential buildings. Typical Applications for high-rise residential apartments, studio and 1-bedroom suites and compact multi-room ducted applications.
This allows the system to replace traditional boiler + chiller + ERV systems with one integrated solution.
For engineers, contractors, and developers looking for a way to simplify mechanical system design, centralized All-in-One HVAC systems like Exinda HPERV represent a new approach to building HVAC design.
Conclusion
All-in-One HVAC systems are becoming an important trend in the HVAC industry as buildings become more complex and construction costs continue to rise. By integrating heating, cooling, and ventilation into one system, AIO HVAC solutions help reduce installation cost, save space, and simplify system design.
As the industry continues to move toward integrated building systems, All-in-One HVAC solutions are likely to become more common in multifamily and commercial projects.
