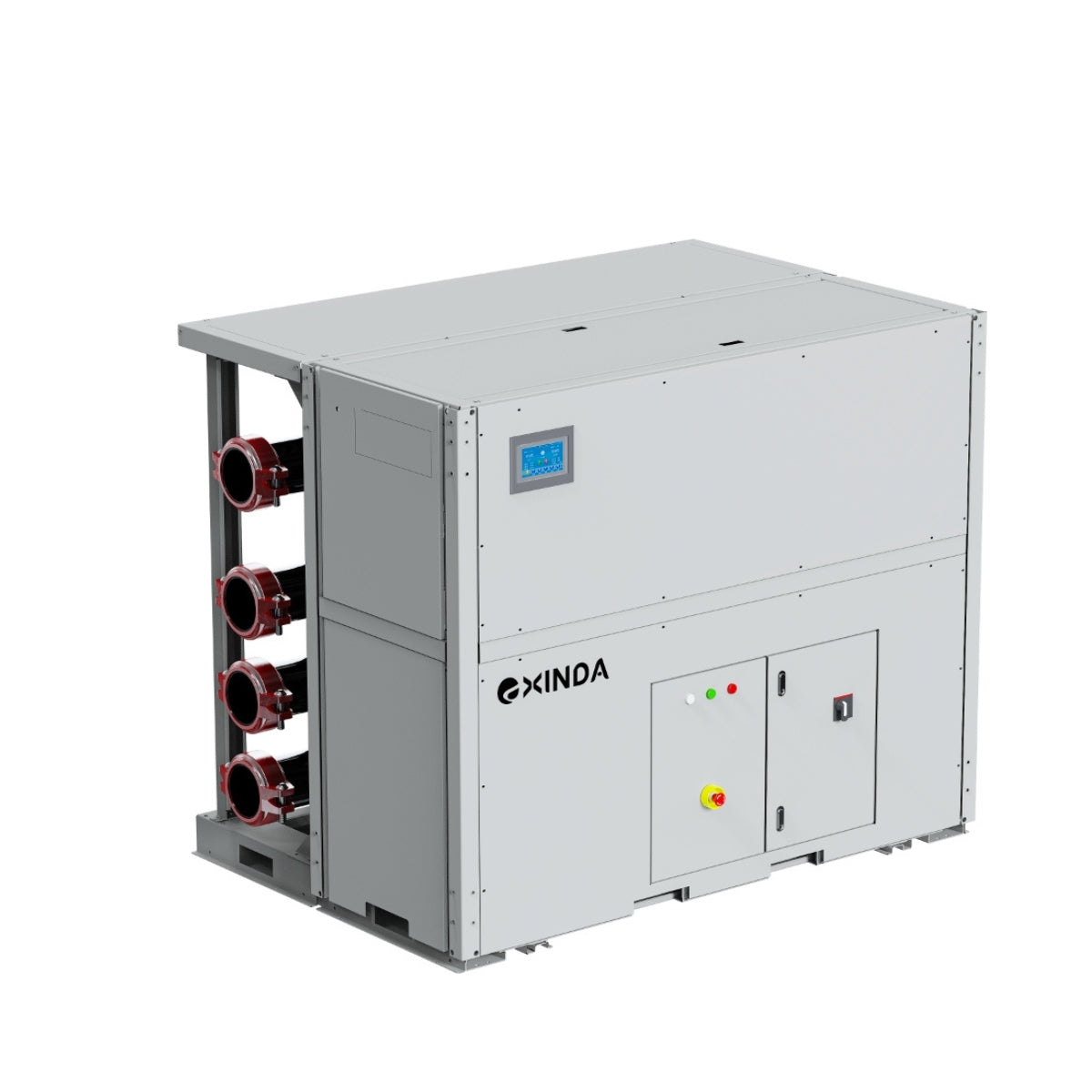

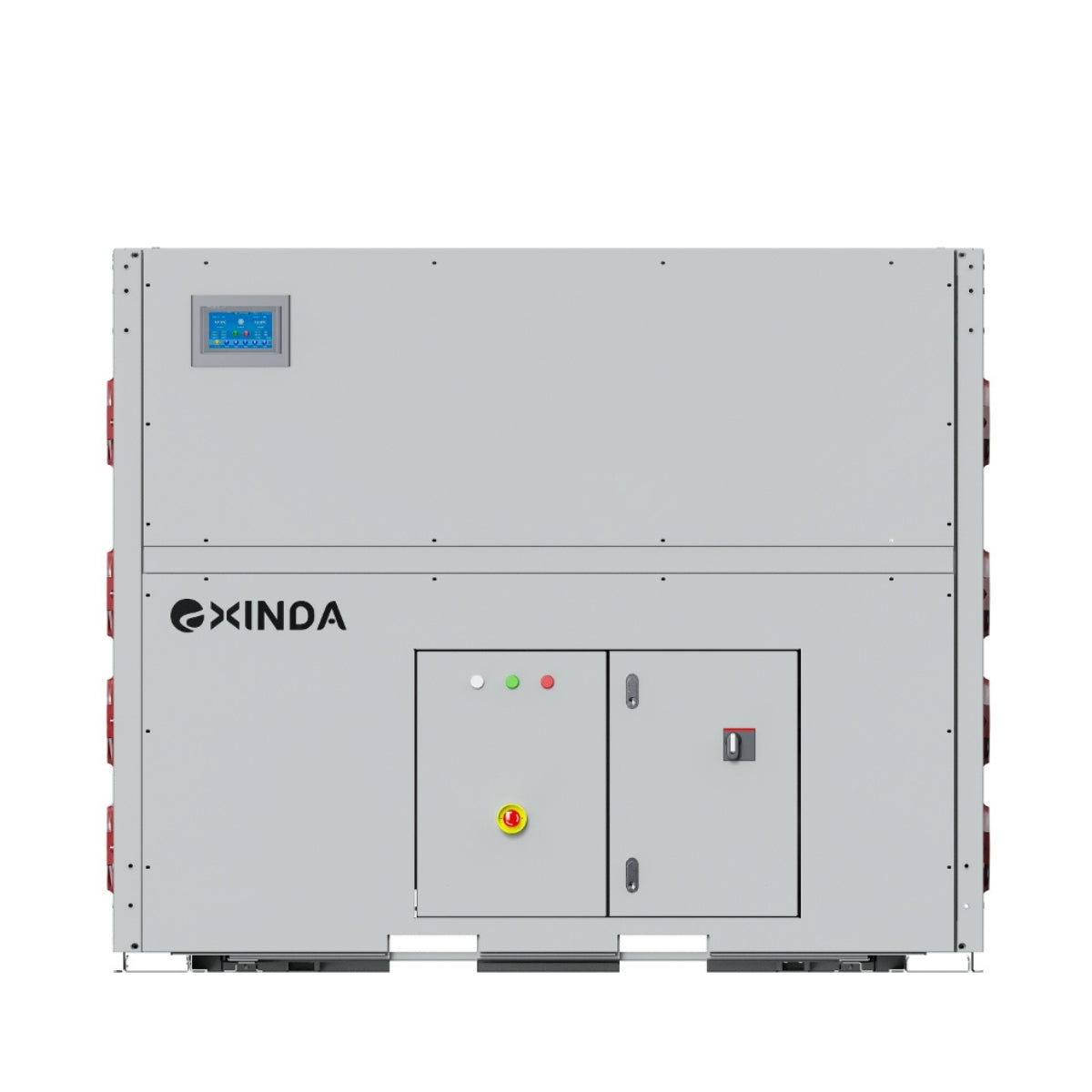

EXINDA FLEX 33.5RT R515B Water-to-Water Scroll Heat Pump Chiller
EXINDA is a global HVAC manufacturer and system provider delivering R515B water-to-water scroll heat pump chillers with North American configurations for commercial and institutional hydronic applications.
The EXINDA FLEX water-to-water heat pump chiller provides chilled water, heating water, and high-temperature hot water. Its dual-circuit scroll-compressor system supports variable building loads and applications requiring water temperatures up to 185°F.
North American configuration: This 33.5 USRT version is configured for North American projects, with 460V / 3-Phase / 60Hz power supply and performance presented in imperial units. For 380V / 3-Phase / 50Hz and metric ratings, view the EXINDA FLEX 118kW European version.
Product Information
• System Type: Water-to-Water Scroll Heat Pump Chiller
• Refrigerant: R515B
• Compressor Technology: Dual Scroll Compressors
• Functions: Hydronic Cooling / Heating / High-Temperature Hot Water
• Regional Configuration: North American Configuration
• Power Supply: 460V / 3-Phase / 60Hz
• Pressure-vessel, electrical, and system certification requirements vary by project configuration
Key Performance
• 33.5 USRT rated cooling capacity
• 53 USRT rated heating capacity
• 49.6 USRT high-temperature heating capacity
• Hot-water temperatures up to 185°F
• Cooling EER up to 4.01 at specified condition
• Heating COP up to 4.03 at specified condition
Key Features
• R515B refrigerant with A1 safety classification
• Dual scroll compressors with staged capacity control
• Two independent refrigerant circuits
• Shell-and-tube heat exchangers
• SS316L water-side components
• PLC control with a 7-inch HMI
• BMS communication and system monitoring
• Multi-unit sequencing control available
Applications
The EXINDA FLEX is suitable for hotels, schools, healthcare facilities, offices, multi-residential buildings, central hydronic systems, and commercial hot-water applications.
Capacity, COP, EER, and water-temperature performance should be reviewed with the applicable rating conditions in the technical submittal.
Water-to-Water Heat Pump Chillers – High-Temperature Heating & Cooling
Efficient R515B hydronic cooling, heating, and hot-water solution for North American commercial and institutional applications. Delivers up to 53 RT heating capacity and 185°F hot water, with modular cascade control for variable building loads.
